High-performance high-temperature dust collection filter "Pyroscreen" *Exhibited at INCHEM
Pyro screen
An extremely high-performance high-temperature dust collection filter that achieves a dust removal efficiency of 90 to 99% or more.

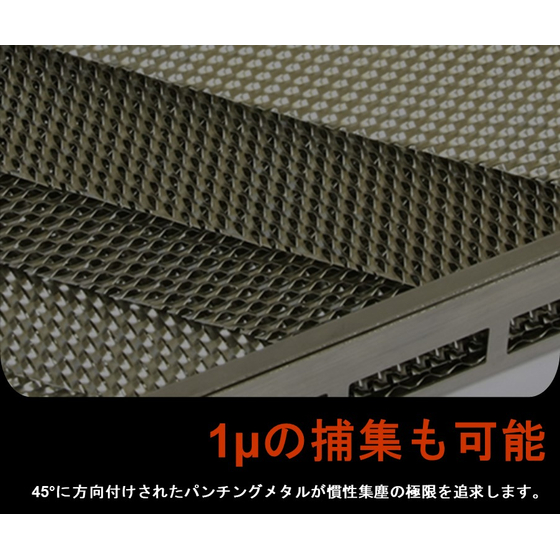

The "Pyro Screen" is a high-temperature dust collection filter made of stainless steel or aluminum. By combining ten screens that forcibly redirect airflow containing dust, we have achieved a dust collection efficiency of over 90-99%. Its extremely low pressure loss and high strength due to its material and structure are significant features. 【Features and Benefits of Pyro Screen】 ■ Usable for both dry and wet conditions ■ Low pressure loss, making it very economical ■ Compatible with high-temperature dust-laden gases and corrosive gases ■ Easy maintenance ■ High-efficiency dust collection ■ Exhibiting at INCHEM TOKYO 2023 ■ Dates: September 20-22, 2023 Venue: Tokyo Big Sight Booth Number: East Hall 3 No. 3-D03 Exhibited Products: Filter materials/screens *Please view the PDF data of the "Pyro Screen" catalog from the download section.
Inquire About This Product
Related Videos
basic information
【Pyro Screen Data】 ■Optimal Wind Speed: 0.8m/sec to 1.2m/sec ■Optimal Particle Size: Dry 1 micron or larger, Wet 0.1 micron or larger ■Optimal Concentration: Average 5g/m3, Maximum 10g/m3 (more efficient at lower concentrations) ■Pressure Loss: Dry approximately 60 to 100Pa, Wet approximately 100 to 150Pa (with airflow speed around 1m/sec) ■Allowable Pressure Loss: Approximately 1000Pa = 1KPa (MAX value) *Please refer to the PDF data of the "Pyro Screen" catalog available for download.
Price information
-
Delivery Time
Applications/Examples of results
- Boiler flue gas treatment - Oil mist removal device - Scrap melting furnace - Tunnel construction dust treatment - Dust treatment in desert areas - Volcanic ash removal - For eliminators - Nicotine and tar mist removal - High-temperature exhaust gas treatment - Sand and shot blast dust collection device - Coal dust removal from desulfurization towers - Incinerators and coal, heavy oil burning - Agricultural and fishery product drying, threshing, rice milling, and feed dust removal - Fireproof grease filter - Ventilation and air conditioning duct grilles in buildings - Ventilation grilles for hotel guest rooms and individual room doors - Spark and dust removal - Human incinerator reignition device
