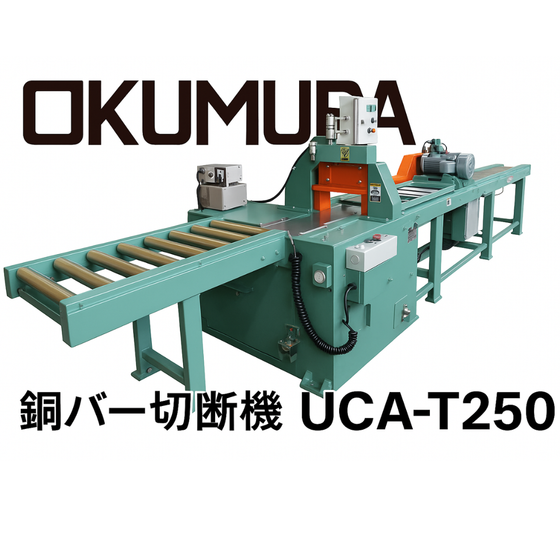

UCA-T250R | Copper Bar Cutting Machine - Fixed Length Cutting + Smooth Cutting Surface
UCA-T250R APKS3000-20R - Copper bar cutting machine with fixed length device
Added an automatic length-setting device with step feeding function to the copper strip cutting machine that achieves a beautiful cut surface without burrs!
The "UCA-T250 model" is a dedicated machine for high-speed and high-precision cutting of conductor materials such as copper strips and busbars at right angles. ✅ Cutting size: Compatible with copper bars of t15mm × width 200mm (equivalent to 4000AF) ✅ Beautiful cutting surface with a chip saw: Reduces the occurrence of burrs and edges, resulting in a very clean finish ✅ High-speed cutting performance: Capable of cutting t15mm copper bars at a feed rate of 30mm/second ✅ Space-saving design: The adoption of a spindle motor achieves a compact body, accommodating limited installation spaces ✅ Chip collection: Chips generated during cutting are collected in a pull-out dust box ✅ Automatic length setting device APKS3000-20R (optional): By adding an automatic length setting device with a step feed function, setup time is reduced, and high-precision positioning is made possible With this single machine, quality improvement and processing cost reduction can be achieved simultaneously. It is a reliable cutting solution that dramatically enhances productivity in copper processing environments.
Inquire About This Product
Related Videos
basic information
UCA-T250R ● Cutting capacity: Thickness 15mm × Width 250mm ● Circular saw: 355mm ● Motor: 5.5kW ● Tool movement: Ball screw feed system APKS3000-20R ● Measurement length: 50–2000mm 【Other features】 ● The blade does not expose during cutting due to the front and rear sliding mechanism (undercut method). ● The use of ball screws for tool feeding allows for precise micro-feeding without stick-slip. ● Cutting oil is automatically sprayed onto the cutting edge simultaneously with the start of cutting (timer-controlled).
Price range
Delivery Time
Applications/Examples of results
● Manufacturer of distribution boards and electrical components: Cutting of copper materials ● Manufacturing of transformer conductor processed products ● Residential and building materials manufacturer ● Cutting of materials for copper and aluminum processing trading companies ● Sheet metal processing industry: Precision cutting of aluminum and copper plates
Detailed information
-
✅ CuFine Copper Bar Cutting Saw 355 | It cuts copper busbars smoothly with a blade design that excels in straightness. | It is designed to minimize workpiece jamming when cutting copper plates. | It divides the chips into three parts to facilitate chip discharge.
-
You can safely cut with a cover-type clamp.
-
✅ Auto Positioner Automatic Length Measuring Device
-
✅ Option - Manual digital display fixed-size device
-
✅ Long stroke specification UCA-T400R ｜Copper bar cutting capacity: Maximum thickness 15mm × maximum width 400mm ｜Link URL: https://pr.mono.ipros.com/okumurakikai/product/detail/2000532413/
Line up（6）
| Model number | overview |
|---|---|
| UCA-T250R | Blade diameter: φ355 Cutting capacity: cutting height 15mm × cutting width 250mm |
| UCA-T400R | Blade diameter: φ355 Cutting capacity: Cutting height 15mm × Cutting width 400mm |
| APKS3000-20R with step feed | Measuring length 50 to 2000 mm |
| APKS3000-30R with step feed | Measuring length: 50 to 3000 mm |
| APKS1000-20R Single Positioning | Measuring length: 50 to 2000 mm |
| APKS1000-30R Single Positioning | Measuring length: 50 to 3000 mm |
