Achieving high-speed response with the laminar flow method (differential pressure type)! A wide range of models available from low flow to high flow.

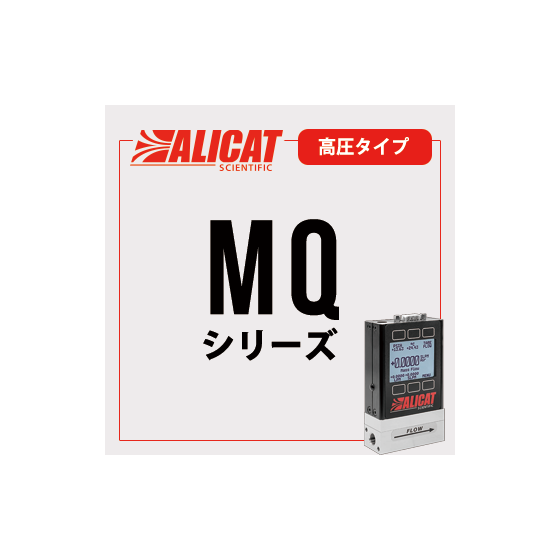

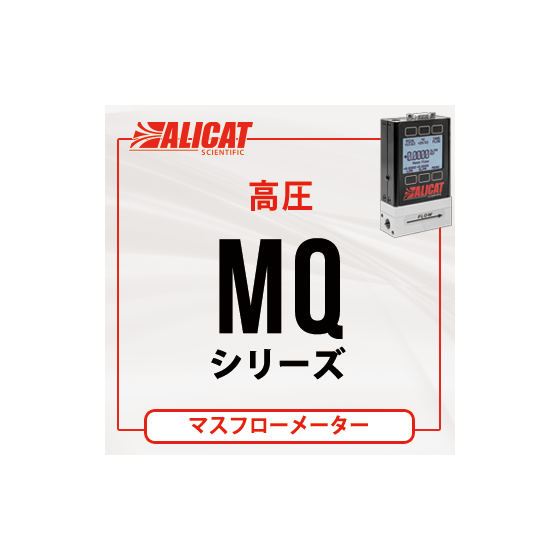

The "MQ Series" is a high-pressure mass flow meter manufactured by ALICAT that can measure the flow of 98 types of gases, including mixed gases, with a single unit. It provides accurate flow measurement of ±(0.8% Reading + 0.2% F.S.) and quickly responds to flow changes with a fast response time of 10 ms. 【Features】 ■ Maximum operating pressure is 320 PSIA (2.2 MPaA). ■ Pressure resistance is 400 PSIA (2.7 MPaA). ■ Fast response time of 10 ms ■ High flow accuracy of ±(0.8% RD + 0.2% FS) ■ Available flow range from 0.5 SCCM to 5000 SLPM ■ Standard equipped with analog output and RS-232C communication ■ Standard equipped with a backlit LCD display *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Product Lineup (Excerpt)】 ■M Series (Standard Type) ■MS Series (Corrosive Gas/Refrigerant Gas Compatible) ■MW Series (Low Pressure Loss Type) ■MQ Series (High Pressure Type) ■MB/MBS/MWB Series (Portable Mass Flow Meters) ■PCU Series (Portable Calibration Unit) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
