Prevents vehicles from jumping into oncoming traffic! Significantly improves road safety.

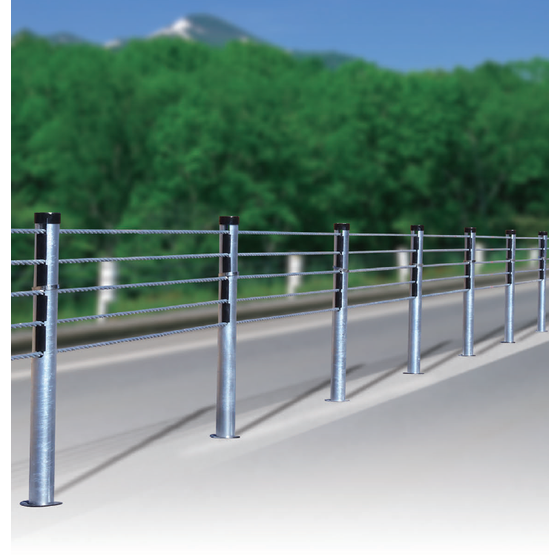

The "Wire Rope Type Guardrail" is a road safety-related product designed for central medians. It prevents vehicles from crossing into oncoming lanes, significantly improving road safety. It can be installed in a compact space, has excellent impact resistance, and features quick recovery capabilities. The intermediate posts adopt a sleeve structure, allowing for easy replacement; if damaged, the post can be removed and replaced with a new one, and the wire rope can be adjusted to complete the work. 【Features】 ■ Can be installed in a compact space ■ High impact absorption capacity ■ Easy to secure openings in central medians ■ Quick recovery work can be completed *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Construction Procedure】 1. Core drill the asphalt and drive the sleeve using an air striker. 2. Secure the terminal post and terminal fittings with anchor bolts. 3. Pass the wire rope through the spacer for the terminal post and set it in the groove of the terminal post along with the strap. 4. Attach the end fittings and turnbuckle, and secure them to the terminal fittings with a jaw bolt. 5. Insert the intermediate post into the sleeve and set the sleeve cover. 6. Set the wire rope, spacers, and strap, and attach the cap. 7. Temporarily tension the wire rope. 8. Cut the excess wire rope, attach the end fittings, and secure them to the terminal fittings. 9. Adjust the tension using the turnbuckle and finish. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ For central reservations *For more details, please refer to the PDF document or feel free to contact us.
