The small, lightweight dedicated construction machine, air puncher, allows for easy construction in a short period!
The "Cross Wing Anchor" is a high-strength anchor specifically designed for rope nets/Mighty nets for use in soil and sediment areas. It is suitable for geological conditions that have traditionally been difficult to work with, such as gravelly soil and areas with tree roots. The cross wing suppresses anchor displacement under loads from various directions, ensuring high strength of 25 to 35 kN. With a compact and lightweight dedicated construction machine, the air puncher allows for easy installation in a short construction period. 【Features】 ■ Capable of installation in gravelly soil and soil with tree roots, which have traditionally been difficult to work with. ■ The cross wing suppresses anchor deformation under loads from various directions, ensuring high strength of 25 to 35 kN. ■ Installation can be completed in a short construction period using a compact and lightweight dedicated construction machine. *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information

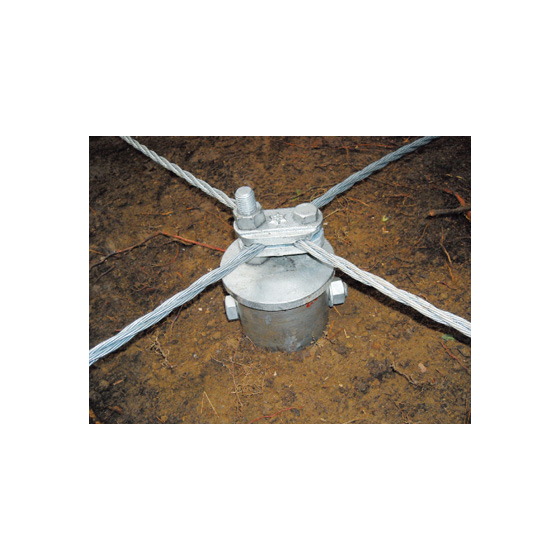

【Construction Procedure】 ■ Insert the anchor body into the cross wing. ■ Insert the air puncher into the anchor and set the anchor body upright in the test hole excavated with the air puncher. ■ Align the wings of the cross wing along the rope direction and drive them in with the air puncher. ■ When the anchor body is driven in, the cross wing is simultaneously driven in by the protrusion attached to the body. ■ Completion of cross wing anchor installation. ■ Attach the anchor head (B anchor). *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
