last updated：Dec 03, 2020

エヌエスシー

Official site

A user-friendly frame design! You can choose between wedge-type and electric adjustment for the lamb adjustment.

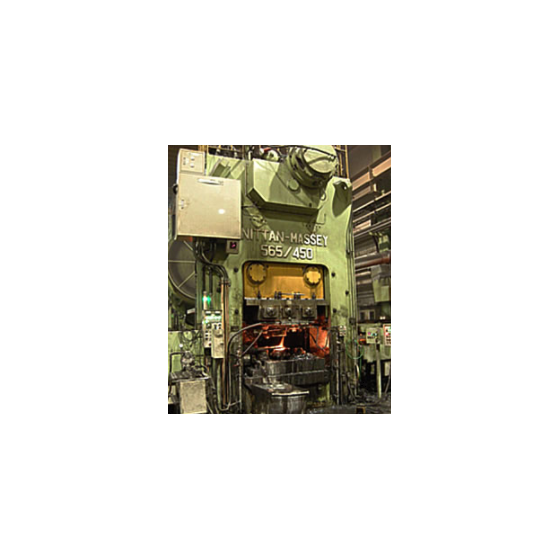

We would like to introduce our "4-Point Suspension Wide Drum Press." With a compact depth dimension and a wide drum, the working area is spacious, making it easy to load and unload workpieces. Automation with robots and other systems is also facilitated. It is strong against eccentric loads and can operate with a 3-station mold attachment. In this case, the ram load at both end stations can operate at 25% less than that of the center station. 【Features】 ■ Ram adjustment can be selected between wedge type and electric adjustment ■ 4-point suspension mechanism ■ Strong against eccentric loads, capable of operating with a 3-station mold attachment ■ Frame design that enhances workability ■ Spacious working area, making it easy to load and unload workpieces *For more details, please refer to the related link page or feel free to contact us.

Related Link - http://www.nittan-sakae.co.jp/widerampress.html

Inquire About This Product

basic information

【Applications of Precision Forging】 ■ Shaving of thin-walled shapes ■ Coining of products with strict dimensional tolerances ■ Distortion correction of complex-shaped products ■ Hot rough forming and setting forming of bearing materials ■ Precision punching and burr trimming ■ Automation of trimming precision forged products using robots *For more details, please refer to the related links page or feel free to contact us.
