Aluminum plate cutting machine Capacity 100x3100mm Aluminium sheet cutting machine＿OKUMURA
URKM2500J-13 - Aluminum sheet cutting machine with back gauge
Support for thick plates, labor-saving, high-speed running saw. Thick plates can be transported with minimal force. This improves work efficiency and contributes to labor-saving and cost reduction.
The "URKM Series" is a circular saw cutting machine that precisely cuts aluminum plates. In addition to its powerful performance and efficient dust collection, the cutting conditions minimize cutting heat, reducing overcutting and enhancing machining accuracy. It allows for the selection of the optimal saw blade for cutting thick aluminum plates, enabling a reduction in cutting time. Reference cutting speed for A5052 with a thickness of 70 mm: F = 2500 mm/min. With two cutting modes—single-position cutting (ABS) and single automatic feed (INC)—efficient cutting operations can be performed. Additionally, it adopts an easy-to-read and simple-to-operate LCD touch panel control system. 【Features】 - The box motion (blade descent followed by blade retraction) reduces the waiting time for operators as the clamp opens after the blade descends. - With workpiece floating ball bearings, a 1-ton aluminum plate can be moved freely in 360° with just 30 kgf of force. - The workpiece is secured with clamps on both sides of the blade, ensuring safe and stable cutting without vibrations. - The telescopic circular saw cover follows the saw blade, efficiently sucking up chips. - The back gauge achieves precise dimensional accuracy with measurements in 0.01 mm increments.
Inquire About This Product
Related Videos
basic information
■URKM ・Cutting capacity Thickness 100mm ・Cutting width Width 1600mm/2500mm/3100mm ・Back gauge depth 1300mm/1600mm
Price range
Delivery Time
Applications/Examples of results
Non-ferrous metal cutting processing sales store Non-ferrous metal materials trading company
Detailed information
Line up（3）
| Model number | overview |
|---|---|
| URKM1600J-16 | - Cutting capacity: Thickness 100 mm × Cutting width 1600 mm × Length 1600 mm |
| URKM2500J-13 | - Cutting capacity: Thickness 100 mm × Cutting width 2500 mm × Length 1300 mm |

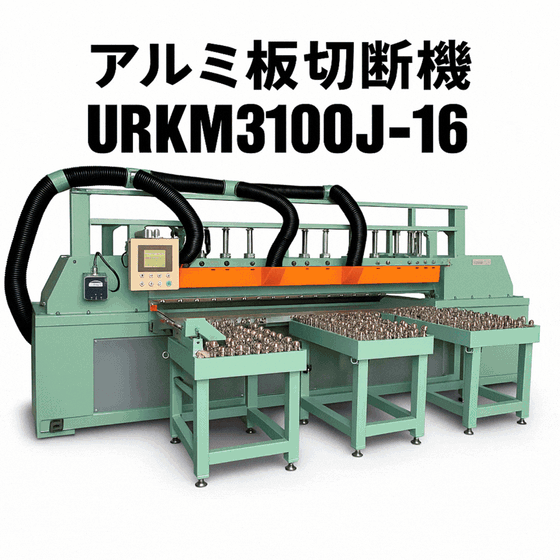

| URKM3100J-16 | - Cutting capacity: Thickness 100mm × Cutting width 3100mm × Length 1600mm |
catalog（1）
Download All Catalogs
News about this product（3）
Company information
Okumura Machinery Manufacturing Co., Ltd. was founded in Takamatsu City in 1952. We began manufacturing woodworking machines in 1965 and consistently focused on aluminum profile cutting in the 1970s, achieving success in this area. By focusing on the goal of ensuring and improving our customers' productivity, we became a market leader in aluminum cutting machine manufacturing. With a product range of over 100 items, we can meet various customer needs. Additionally, our semi-custom machine designs allow us to provide products tailored to various fields and company sizes. Our domestic product range, which exceeds 6,000 units, speaks to our capabilities. However, what we take particular pride in is that we have remained a grounded company that embodies the values of small and medium-sized enterprises, such as quality, flexibility, individuality, reliability, and closeness to our customers. One indicator of the superior quality of our products is their longevity, with many of our products being used for over 30 years. Our goal is to develop perfect products for our customers. We look forward to being your partner in providing products and services that understand and meet your needs at Okumura Machinery Manufacturing Co., Ltd.
