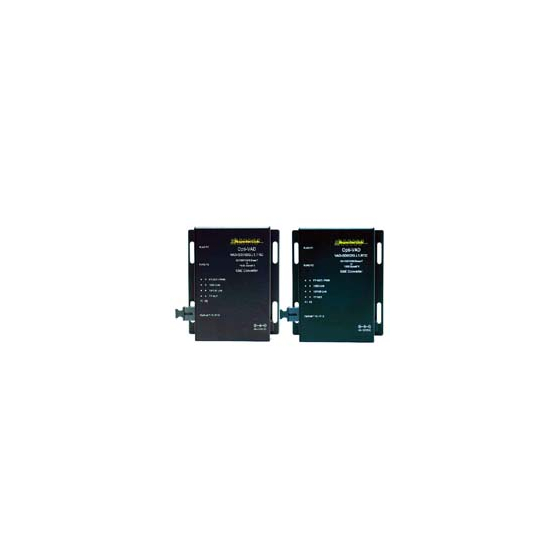

VAD-SD002G.L1.xxx for long-distance transmission of 10/100/1000M Ethernet over a single optical fiber!
The VAD-SD002G.L1.xxx transmits a single 10/100/1000M Ethernet over one optical fiber for long-distance transmission. - Use VAD-SD002G.L1.TRC and VAD-SD002G.L1.RTC in pairs for transmission. - The optical fiber is connected with a single-mode fiber and the connector is an SC connector. - Long-distance transmission of up to 20 km is possible. - It has a built-in Ethernet switch function (2 ports) allowing connection of two LAN cables. * The two connected Ethernet systems are treated as the same network. * This enables communication between the connected devices. * The two systems cannot be sent as independent networks. - Operates on DC 9-12V (power adapter included). * If multiple units are installed, they can be collectively installed (stored) using a separately sold 19-inch rack mount chassis.
Inquire About This Product
basic information
Model Number: VAD-SD002G.L1.xxx Number of Channels / Direction: 1 / ⇔ Communication Standards: 10BASE-T/100BASE-TX/1000BASE-T⇔1000BASE-LX Communication Speed: 10/100/1000Mbps Ethernet Connection Terminals: RJ45 ✕2 Number of Optical Fibers: 1 Maximum Transmission Distance: 20km (Single Mode) Optical Connection Terminal: SC Connector Power Supply Voltage: DC9–12V (DC12V power adapter included) Power Consumption: 6W Operating Environment: Temperature; 0–70℃ Humidity; 0–95%RH (No condensation) External Dimensions: 87.5(W)✕22.9(H)✕103.5(D)mm (Common for transmitter/receiver) Model Number Details: VAD-SD002G.L1.TRC (Transmitter), VAD-SD002G.L1.RTC (Receiver)
Price range
P3
Delivery Time
※Delivery times may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
VAD-SD002G.L1.xxx transmits a single 10/100/1000M Ethernet over one optical fiber for long-distance transmission. - Transmission is done with a transmitter (VAD-SD002G.L1.TRC) and a receiver (VAD-SD002G.L1.RTC). - It is capable of transmitting up to 20 km using single-mode optical fiber.
Line up（2）
| Model number | overview |
|---|---|
| VAD-SD002G.L1.TRC | 10/100/1000M Ethernet optical fiber transmission transmitter |
| VAD-SD002G.L1.RTC | 10/100/1000M Ethernet optical fiber transmission receiver |
