Adopts a valve material with excellent shock resistance! For die-casting applications with severe pressure fluctuations!

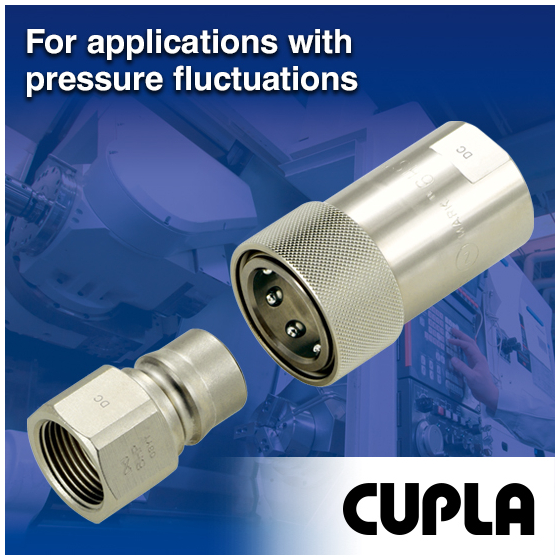

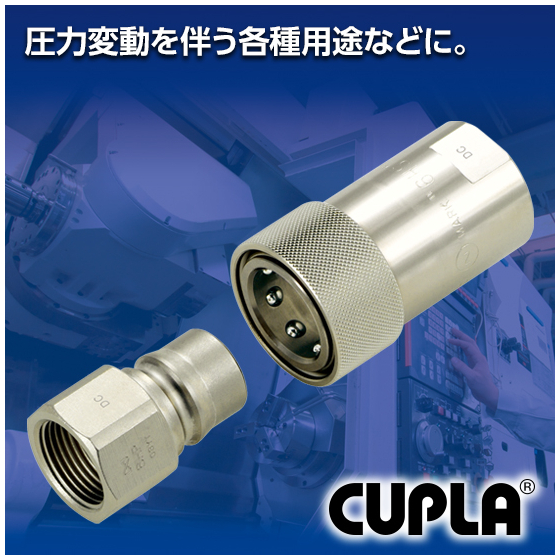

The "HSP-DC Coupler" is a quick fluid connector for hydraulic piping that fully adopts "electroless nickel-phosphorus plating" which has no solubility against flame-retardant "water-glycol based hydraulic oil." It is available in five sizes: Rc1/4, Rc3/8, Rc1/2, Rc3/4, and Rc1, forming a series. The "HSP" and this product are compatible with each other in the same size. Additionally, it uses a valve material with excellent impact resistance, making it suitable for applications such as die-casting machines where pressure fluctuations are significant. 【Features】 ■ Electroless nickel-phosphorus plating adopted ■ Improved impact resistance ■ Wide variety of mounting thread sizes ■ Compatibility available ■ Suitable for various applications involving pressure fluctuations *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■ Main body material: Special steel (electroless nickel-phosphorus plating) ■ Mounting screw sizes: Rc1/4, Rc3/8, Rc1/2, Rc3/4, Rc1 ■ Maximum operating pressure MPa {kgf/cm2}: 20.6 {210} ■ Pressure resistance MPa {kgf/cm2}: 31.0 {316} ■ Seal material: Nitrile rubber ■ Marking symbol: NBR ■ Operating temperature range: -20°C to +80°C *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Connection points for hydraulic piping of die casting machines, various casting machines, electric furnaces, molding presses, etc. *For more details, please refer to the PDF document or feel free to contact us.
