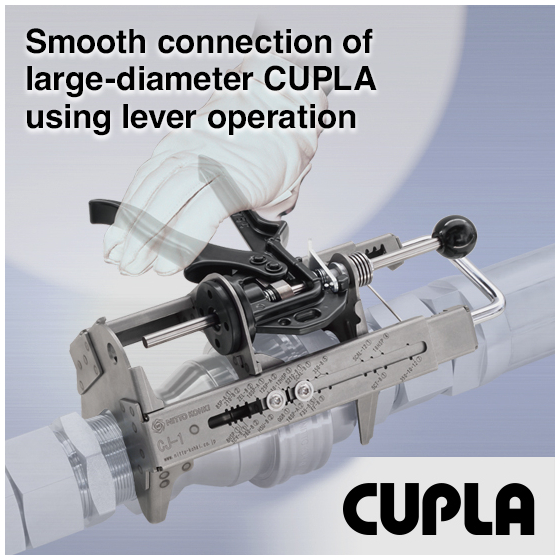

Equipped with a safety device! Easily and smoothly connect the large-diameter coupler with lever operation.
The "CJ-1" is a coupler connection jig that offers comfortable operability and versatility. By adjusting the overall length of the main body, it can accommodate all couplers of the target products, and during the connection operation, the handle can be used at any angle that does not interfere with the coupler. If excessive load is applied during connection, the safety device activates to prevent damage to the main body. 【Features】 - Connect large-diameter couplers easily and smoothly with lever operation. - Accommodates all couplers of the target products by adjusting the overall length of the main body. - Can be used at any angle that does not interfere with the coupler during connection operation. - If excessive load is applied during connection, the safety device activates to prevent damage to the main body. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications (Partial)】 ■Main body material: Stainless steel (SUS430) / Aluminum alloy ■Residual pressure connection: Not usable ■Actual operating temperature: Room temperature ■Storage temperature range: -20°C to +60°C ■Main body weight: 1.85kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Connection of large-diameter couplers *For more details, please refer to the PDF document or feel free to contact us.
