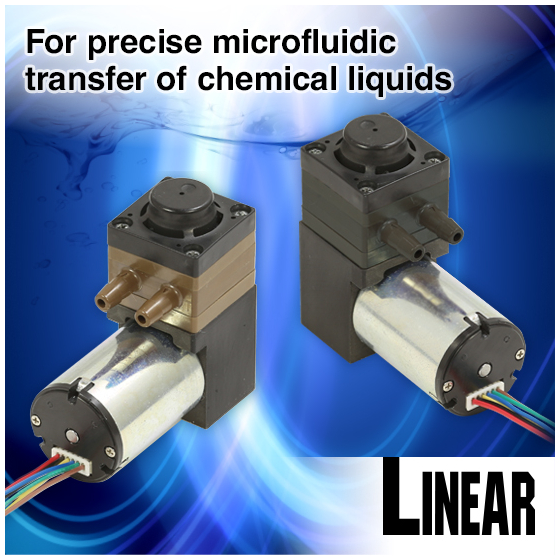

Small diaphragm liquid pumps with built-in pulse absorption. Suitable for precise microfluidic transfer of chemical liquids.
Introducing our small liquid diaphragm pumps "DPE-100BLC / DPE-200BLC". These self-priming pumps can run dry and deliver a long service life of up to 6000 hours (MTTF). They are equipped with a built-in pulse absorption mechanism and compatible with PWM control. Designed to handle various liquids, these pumps are suitable for precision microfluidic transfer in applications such as medical devices, food processing, water treatment, and environmental analysis instruments. Features: ■ PWM controllable ■ Suitable for various liquids ■ Built-in pulse absorption mechanism ■ Long service life: 6000 hours ■ Self-priming and dry-run capable For more details, please refer to the PDF datasheet or contact us directly.
Inquire About This Product
Related Videos
basic information
Specifications: - Rated Voltage: 24 V DC - Working Pressure Range: 0 to 100 kPa｛0 to 1 kgf/cm²｝ - Maximum Pressure: 300 kPa｛3 kgf/cm²｝ - Duty Cycle: Continuous - Rated Performance (MTTF): 6000 hours - Inlet/Outlet: 4.7 mm O.D. straight barb - Insulation Classification: Class E equivalent - Mounting Dimensions: 9.5 (L) x 17 (W) mm - Weight: 80 g For more details, please refer to the PDF catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
[Applications] - Liquid transfer in analytical instruments used in medical, food, water treatment, and environmental monitoring - Liquid transfer for filtration, sampling, cleaning, and sterilization systems - Ink transfer in industrial inkjet printers For more details, please refer to the PDF datasheet or contact us directly.
catalog（1）
Download All Catalogs
Company information
The NITTO KOHKI Group supports comfortable living and a prosperous future across a wide range of fields—from construction sites to the aerospace industry and global environmental maintenance projects. We respond to increasingly diverse needs with outstanding engineering that promotes efficiency and labor-saving. Our unique technologies are developed from the user’s perspective, creating convenient and innovative tools that serve as bridges to the next generation.
