Samples can be polished with individual loads and central loads! It can accommodate samples of different diameters.

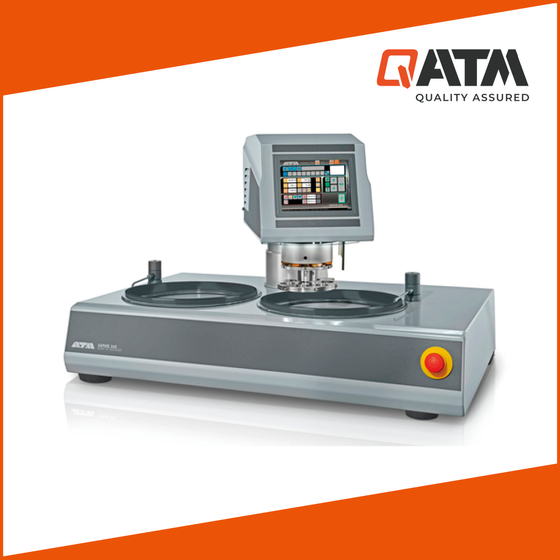

The "Sapphire 550" is an automatic polishing device equipped with the polishing head "Ruby 520," designed for polishing two surfaces of work wheels with diameters ranging from Φ200 to 300mm. The "Ruby 520" allows for polishing/polishing samples with individual and central loads. With individual loads, it can accommodate samples of different diameters by attaching distance rings to individual sample plates. Additionally, the setup and operation of the work process are conducted via a bright and easy-to-use touch panel, which features many intuitive icon displays, allowing users to become familiar with the operation quickly. 【Features】 ■ Speed-adjustable work wheel and polishing head ■ Electronic control via touch panel ■ Built-in memory for saving programs ■ Option to select the rotation direction of the polishing head (clockwise or counterclockwise) ■ Automatic control safety cover ■ Sturdy aluminum housing and powder-coated automatic polishing agent *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Working wheel dimensions: Φ200–300mm ■Number of working wheels: 2 sides ■Rotation speed ・Working wheel: 50–600rpm ・Polishing head: 30–150rpm ■Rotation direction: Counterclockwise (clockwise direction allowed only for polishing head) ■Dimensions (W)x(D)x(H): 1020x660x550–660mm ■Weight: Approximately 110kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（3）
Download All Catalogs
Company information
Varda Scientific covers a wide range of products, from sample grinding, crushing, homogenization, and heat treatment for laboratory use, to particle size measurement, component analysis, cutting, polishing, embedding, and hardness testing. Varda Scientific has five brands: Leco, QATM, Carbolite Gero, Eltra, and MRB. Since 1999, we have been operating as Leco Corporation, handling products from Leco and Leco Technology. On January 1, 2014, we began handling Carbolite Gero, and at the same time, in line with the increase in the number of brands we handle, we changed our company name to Varda Scientific Corporation. In 2018, we started handling ATM and Qness, and in June 2019, MICROTRAC and Microtrac Bell joined the Varda Scientific Group. As of May 1, 2020, ATM and Qness merged to become QATM, further enhancing our capabilities and allowing us to better meet our customers' needs.
