99.9% of laser beams are transmitted! A beam splitter suitable for absolute power measurement.

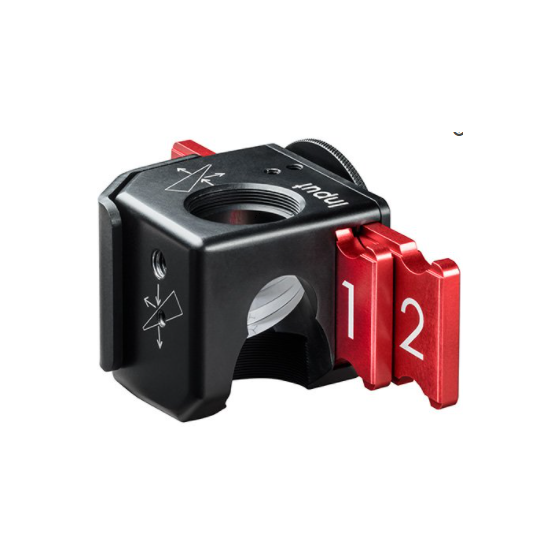

The "LBS-300HP-NIR" is a beam splitter for high-power lasers. It is suitable for absolute power measurement as it transmits 99.9% of the laser beam. It provides uniform attenuation for various laser shapes (Gaussian, top hat, donut, etc.) while maintaining the polarization and overall profile of the incident laser beam, offering an accurate sample of the incoming beam. 【Features】 ■ For high-power lasers ■ Capable of measuring the laser beam after it has been reduced to 0.1% (1/103) ■ Can measure beam shape, focus, beam waist, and M2 of high-power lasers up to 5kW or 15MW/cm² ■ Accessories with a 1-inch lens tube, such as beam dumps, can be directly attached *For more details, please refer to the related link page or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Interface: C-mount ■Recommended Wavelength: up to 1064 nm ■Damage Threshold: 5kW, 15MW/cm² ■Reflectivity: 0.000025% - 0.0001% (1/10^6) ■Material: UVFS ■Clear Aperture: 15mm *For more details, please refer to the related link page or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related link page or feel free to contact us.
Company information
At Ophir Japan Co., Ltd., we provide import sales of all products developed and manufactured by Ophir Optronics Solutions Ltd. (Israel), which is recognized worldwide for its high quality and boasts cutting-edge technology development, as well as domestic repair and calibration services. Based on innovative technology, Ophir's products have gained significant market share globally, and to support these products, the Ophir Group, including our company, employs over 570 staff members.
