Achieving accurate and precise discharge volume! We provide continuous supply of paints essential for industrial coating.

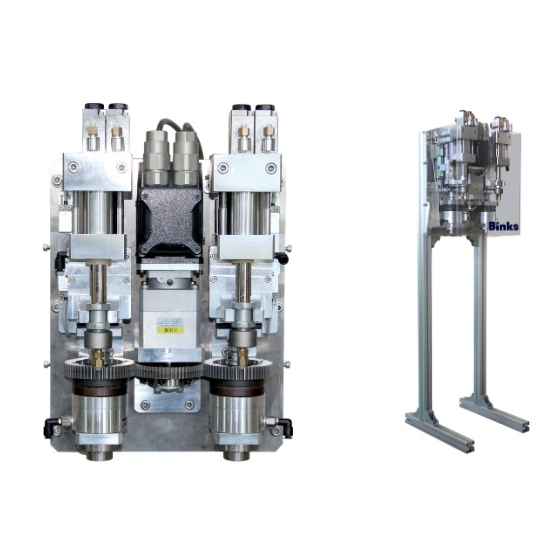

The "Dual Syringe Pump" is a precision paint supply device suitable for the transportation of hardeners for two-component paints and UV paints. Driven by an explosion-proof AC servo motor, it achieves accurate and uniform high-precision continuous supply. Additionally, the sequence control significantly reduces pulsation. 【Features】 ■ Precisely and specially controls piston drive to achieve accurate and precise discharge volume. ■ With a unique cleaning mechanism, it ensures stable paint supply even for difficult paints that tend to harden. ■ A new design that alternately drives two pistons enables continuous supply of paint, which is essential for industrial painting. *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Model: RSP-01 ■Dimensions: W340 x H1,220 x D410 mm ■Weight: 41 kg ■Discharge volume range: Minimum 2 cc/min to Maximum 400 cc/min ■Maximum discharge pressure: 1.0 MPa ■Primary side paint supply pressure: 0.4 to 0.6 MPa ■Operating temperature: 0 to 40 ℃ *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
In 1888, Dr. Allen DeVilbiss invented the spray gun, and subsequently, in 1936, Mr. Harold Ransburg patented an electrostatic spray painting method that applied electrostatics. This became the foundation for what later developed into "CFT: Carlisle Fluid Technologies." Our company was established in 1963 as Japan Ransburg Co., Ltd. through a joint investment by Ransburg Corporation in the United States and Tokiko Co., Ltd. After more than 50 years since its founding, we changed our company name to CFT Ransburg Co., Ltd. in May 2017. CFT oversees brands that boast excellent technologies in the field of industrial painting, including DeVILBISS for spray guns, Ransburg for electrostatic painting, Binks for high-efficiency bellows pumps, BGK for dryers, and MS for powder coating machines, providing advanced painting-related equipment and facilities in various regions around the world.
