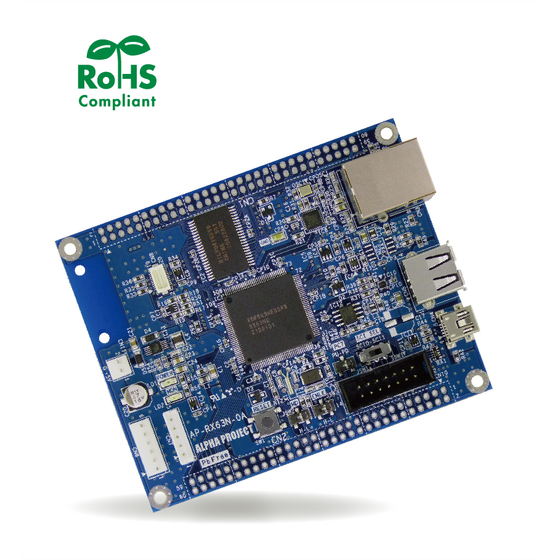

This is a high-performance, low-power CPU board equipped with the RX63N (manufactured by Renesas Electronics), ideal for prototyping and embedded applications.
It is equipped with large-capacity memory, an A/D converter (8 channels) and a D/A converter (1 channel), as well as rich communication functions (Ethernet, USB 2.0 Host/Function, CAN), in addition to an LCD interface. The LCD is connected using a direct drive method with DMA transfer via EXDMAC and timers, allowing for drawing without an external LCD controller. Our touch panel LCD kit "LCD-KIT-D01" has not only signals for LCD connection but also control I2C signals, enabling the construction of a low-cost LCD drawing system.
Inquire About This Product
basic information
- Operating frequency: Maximum 96MHz (12MHz crystal oscillator) - Equipped with 2MByte Flash ROM (for program storage), 32KByte Flash ROM (for data storage), and 128KByte RAM - Equipped with up to 8-channel A/D converter - Equipped with a serial I/F connector, allowing easy communication with a PC when various interface converters are connected - Equipped with an Ethernet communication connector (RJ-45) and USB interface (Host/Function) - Equipped with a CAN communication connector, enabling easy communication with CAN devices when a separately sold CAN transceiver adapter is connected - LCD board [LCD-KIT-D01] can be connected (4.3-inch WQVGA multi-touch capacitive touch panel) - Wireless LAN functionality can be added by connecting a wireless LAN module [WM-RP series] - Signal lines necessary for expansion are brought out to the external connection connector, allowing for connections such as I/O - All circuit diagrams are publicly available, making it suitable for educational and training purposes - Sample programs are publicly available
Price information
¥14,800 (including tax ¥16,280)
Price range
P2
Delivery Time
※The delivery time varies depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Ideal for various prototypes and small lot products.
Company information
Our company is engaged in the development of microprocessor application systems, electronic circuit design and manufacturing, firmware development, and PC software development, providing comprehensive solutions to challenges such as the diversification of customer needs, shortening product cycles, and cost reduction.
