It is a low-power board computer equipped with the Renesas Electronics RX63TL.

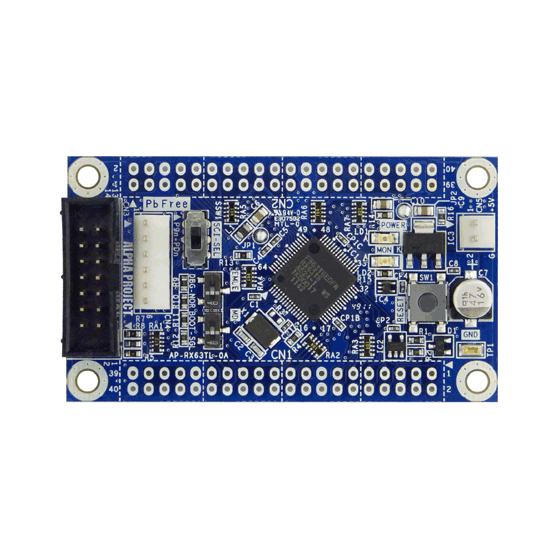

The AP-RX63TL-0A is equipped with the RX63TL, featuring a low price, compact size, and a serial communication I/F connector.
Inquire About This Product
basic information
- Operating frequency: Maximum 80MHz (10MHz crystal oscillator) - Equipped with 64KByte FlashROM (for program storage), 8KByte FlashROM (for data storage), and 8KByte RAM - Equipped with a multifunction timer suitable for motor control - Equipped with an 8-channel A/D converter, 12-bit 8-channel - Equipped with a serial communication I/F connector - All circuit diagrams are publicly available
Price information
¥5,600 (including tax ¥6,160)
Price range
P1
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Ideal for various prototypes and small lot products.
