CPU board equipped with RX651 featuring built-in LCD controller, large capacity memory, and abundant communication functions.

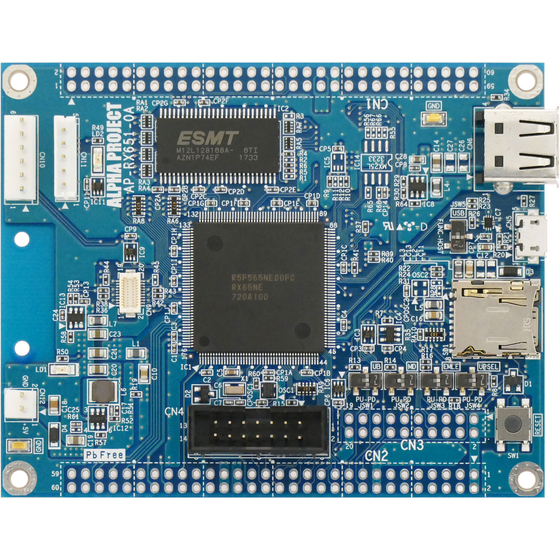

This is a high-performance CPU board equipped with the RX651 (manufactured by Renesas Electronics), which is ideal for prototyping and embedded applications. By combining the RX651, which has a built-in LCD controller, with an LCD panel, it is possible to achieve a fast and richly expressive UI. Additionally, it is equipped with large-capacity memory and a variety of communication interfaces (USB 2.0 Host/Function, CAN), as well as an SD card, A/D converter, and D/A converter, all implemented on a compact 100×80mm board. The signals necessary for external expansion are routed to external connection connectors, allowing for a wide range of applications, including various prototypes and small-lot products.
Inquire About This Product
basic information
- Equipped with RXv2 core "RX651 (R5F5651EDDFC)" - Operating frequency up to 120MHz (24MHz crystal oscillator) - Large capacity memory: FlashROM 2MByte, RAM 640KByte, SDRAM 16MByte - 1 channel USB Host (Full-Speed compatible) and 1 channel USB Function (Full-Speed compatible) for exclusive use - Capable of connecting a capacitive touch panel LCD "LCD-KIT-D01" - Easily add wireless functionality by connecting WM-RP/BT-RL series - Easily add RS232, USB, SD card, and wireless LAN functions by connecting an interface converter to the serial I/F connector - Easily communicate with CAN devices by connecting a CAN transceiver adapter - Signal lines necessary for expansion are brought out to the external connection connector, making I/O connections easy - All circuit diagrams are publicly available, suitable for educational and training purposes - Sample programs are available
Price information
¥16,800 (including tax ¥18,480)
Price range
P2
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Ideal for various prototypes and small lot products.
