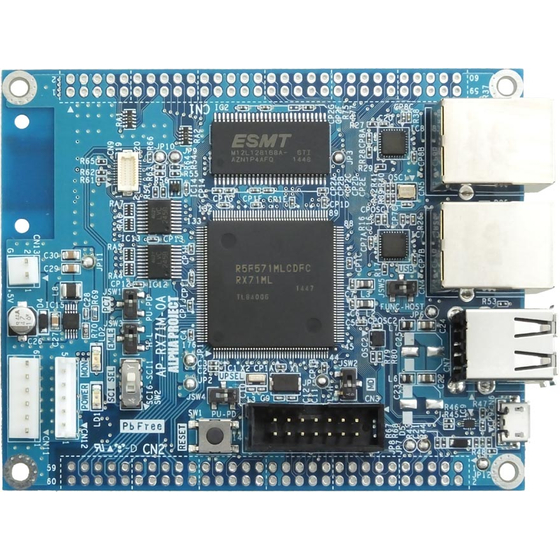

This is a board computer equipped with the RX71M from Renesas Electronics.
The AP-RX71M-0A is equipped with the RXV2 core RX71M and features Ethernet 2ch, USB, and CAN communication connectors.
Inquire About This Product
basic information
- Equipped with RXv2 core "RX71M (R5F571MLDDFC)" - Maximum operating frequency of 240MHz - Flash ROM (for program storage: 4MByte, for data storage: 64KByte) RAM 512KByte, SDRAM 16MByte - Two channels of Ethernet port supporting 10/100BASE-TX - One channel each of USB Host (supporting Full-Speed/High-Speed) and USB Function (supporting Full-Speed) - LCD I/F connector equipped - Camera I/F connector equipped - Wireless module I/F connector equipped - Serial I/F connector equipped - CAN communication connector equipped - Connector for on-chip emulator included - Signal lines necessary for expansion to external connection connectors are drawn out, making I/O and other connections easy - All circuit diagrams and sample programs are publicly available
Price information
¥21,800 (including tax ¥23,980)
Price range
P2
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Ideal for various prototypes and small lot products.
Company information
Our company is engaged in the development of microprocessor application systems, electronic circuit design and manufacturing, firmware development, and PC software development, providing comprehensive solutions to challenges such as the diversification of customer needs, shortening product cycles, and cost reduction.
