This is a CPU board with high-speed real-time performance that enables advanced motor control.

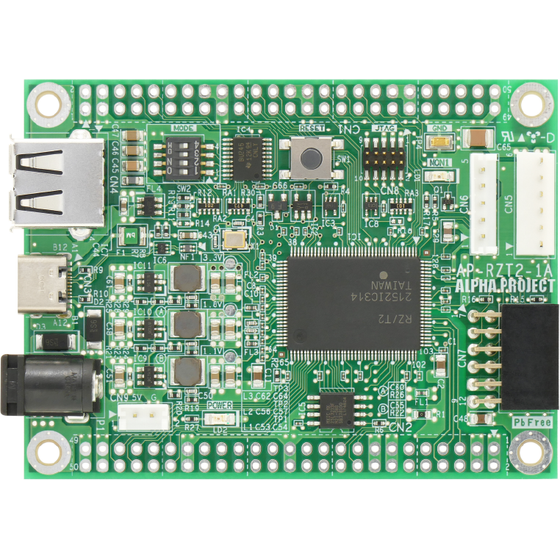

The AP-RZT2-1A is a CPU board equipped with the RZ/T2M CPU from Renesas Electronics. It achieves advanced real-time processing, such as motor control, with its Arm Cortex-R52 core. Despite its ultra-compact size of 80×60mm, it features USB, CAN, and serial I/F, as well as a Pmod connector, allowing for the expansion of various functions by utilizing commercially available Pmod modules.
Inquire About This Product
basic information
- Equipped with Arm Cortex-R52 core "RZ/T2M" - Various memory included QSPI FlashROM 4MByte Built-in RAM 1.5MByte Tight-coupled memory 512KByte - Abundant interfaces Pmod, USB, CAN, Serial I/F - Adopts FreeRTOS as the standard OS - Provides circuit diagrams and sample programs
Price information
¥19,800 (including tax ¥21,780)
Price range
P2
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Prototyping, evaluation, and integration into small lot products.
Detailed information
-
RZ/T2M equipped CPU board AP-RZT2-1A
