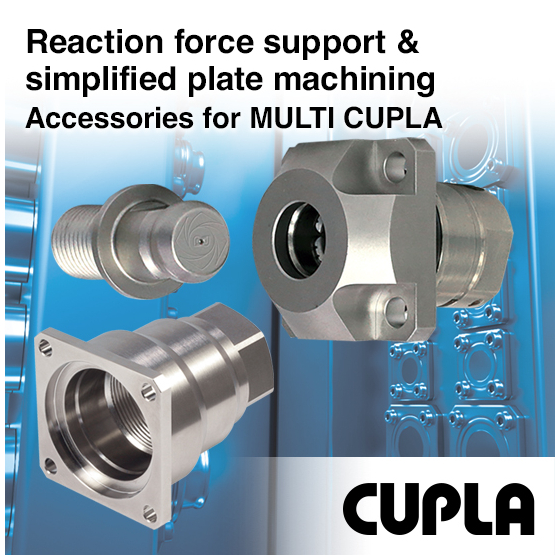

To retain reaction force of MULTI CUPLA, reduce plate thickness, and simplify the machining of the plate! Contributs to the reduction of total equipment costs.
AUTO CLAMP UNIT for MULTI CUPLA is designed to be mounted on the plates of multiple piping system to prevent the plates from separating due to fluid pressure. Features 1. Retains the reaction force of MULTI CUPLA 2. Equipped with an air-driven lock/unlock mechanism 3. Ready with mounting hole for proximity sensor The adapter for MULTI CUPLA MALC type can be directly connected to taper pipe thread without thread machining on the plate. Features 1. Simplifies machining of the plate 2. Reduces thickness of the plate For more details, please refer to the PDF catalog or feel free to contact us.
Inquire About This Product
Related Videos
basic information
[Specifications of AUTO CLAMP UNIT] - Body material (Surface treatment) Socket: Special steel, Brass (Nickel plated) Plug: Special steel (Nickel plated) - Maximum acceptable load: 20 kN - Allowable eccentricity: Within 0.6 mm dia. [Specifications of adapter for MULTI CUPLA MALC type] (MALC-01 type and MALC-SP type) - Body material (Surface treatment) Adapter for MALC-01 type: Brass Adapter for MALC-SP type: Stainless steel - Acceptable distance between plates: 0 to 0.5 mm - Allowable eccentricity: 1.4 mm dia.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
