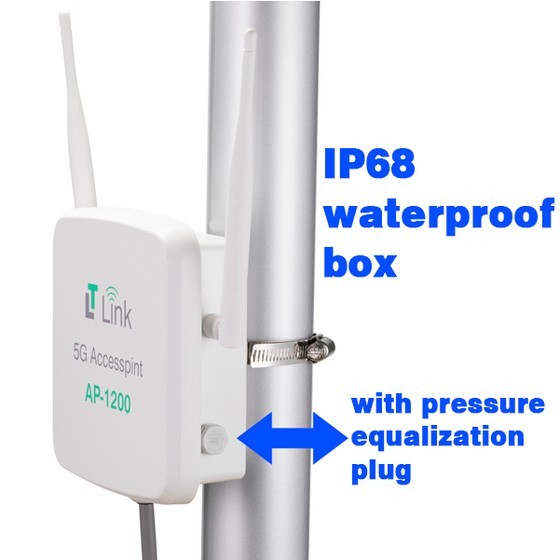

IP68 PLASTIC ENCLOSURE with VENTILATION PLUG - WGV series

An outdoor box with an internal pressure adjustment vent that prevents deformation of the box due to thermal expansion.

IP68 high performance plastic box protected from immersion as long as 24 hours at 1m depth where external (surroundings) and internal (inside box) pressure are different. ASA material is resistant to deterioration and discoloration from ultraviolet rays. Perfect for use as outdoor communication or network devices. Self-tapping captive screws which are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover. Please drive the self-tapping captive screws for cutting a thread into the holes at first so that the cover and body can be secured together properly. Equipped with the ventilation plug for enabling pressure equalization. Ventilation plug protects the enclosure from deformation by equalizing the pressure in environments where there are differences between high daytime and low nighttime temperatures, as well as venting the gas generated within. Maintains an IP68 protection class with the ventilation plug which prevents ingress of water while allowing water vapor molecules to diffuse through the microporous membrane. By using the optional mounting accessories, it can be installed on walls and poles with ease. Optional terminal blocks, WTB series can be installed onto the existing bosses inside the WG series box without additional processing or customization, hence can also function as a terminal junction box.
