It can process samples up to 100mm and can grind them down to 0.8mm depending on the properties of the sample.

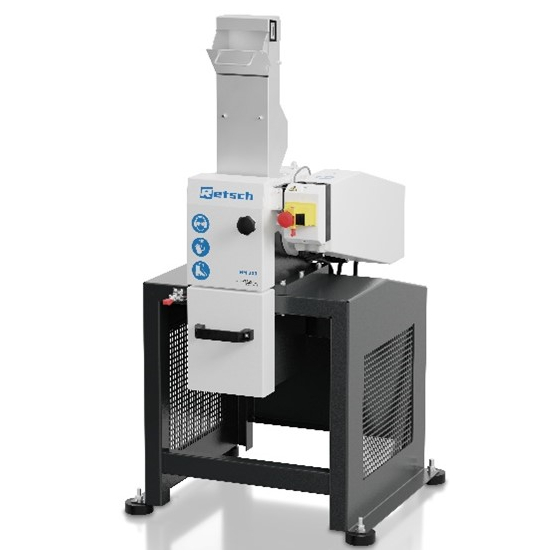

The Letches Swing Hammer Mill HM200 has a horizontally rotating shaft in the crushing chamber, to which 10 freely swinging hammers are attached. These hammers crush the sample at high speed within the crushing chamber. Unlike fixed hammers, swing hammers minimize the risk of the machine getting blocked and reduce wear. The crushing particle size can be adjusted using a screen (40mm to 2mm) mounted at the bottom of the crushing chamber.
Inquire About This Product
Related Videos
basic information
Sample input size: < 100 mm Crushing particle size: < 0.8 mm Receiver capacity: 10L, 30L, or continuous discharge Processing capacity: up to 1500 kg/h *For more details, please visit our website or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■Sample preparation in the lab *For more details, please visit our website or feel free to contact us.
Company information
Varda Scientific covers a wide range of products, from sample grinding, crushing, homogenization, and heat treatment for laboratory use, to particle size measurement, component analysis, cutting, polishing, embedding, and hardness testing. Varda Scientific has five brands: Leco, QATM, Carbolite Gero, Eltra, and MRB. Since 1999, we have been operating as Leco Corporation, handling products from Leco and Leco Technology. On January 1, 2014, we began handling Carbolite Gero, and at the same time, in line with the increase in the number of brands we handle, we changed our company name to Varda Scientific Corporation. In 2018, we started handling ATM and Qness, and in June 2019, MICROTRAC and Microtrac Bell joined the Varda Scientific Group. As of May 1, 2020, ATM and Qness merged to become QATM, further enhancing our capabilities and allowing us to better meet our customers' needs.
