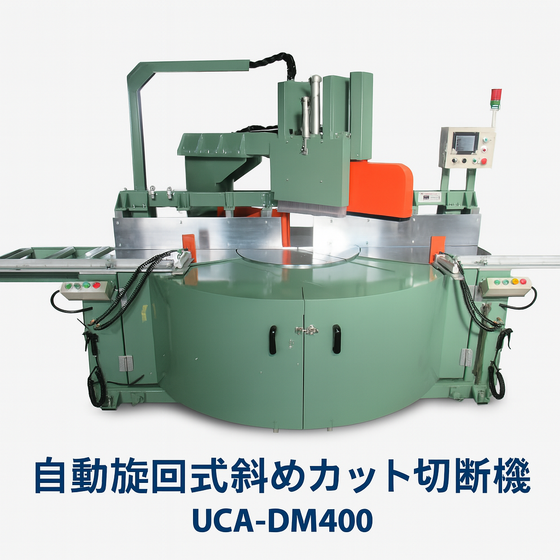

UCA-DM400 + IMC3000 | Programmed angle cutting with fixed size device
Cycle Operation Mode IMC3000
A program cycle operation mode has been added to the aluminum angle cutting machine with an automatic dimensioning device.
The cycle operation mode with the added IMC3000 length measurement device improves work efficiency by automatically feeding to the next process and rotating the angle after cutting is completed. Additionally, cutting short product lengths can be easily performed. This machine is a model that adds the cycle operation mode (optional) to the aluminum cutting machine UCA-DM400 and the IMC1000 series with the length measurement device.
Inquire About This Product
Related Videos
basic information
■Blade shaft motor: 2.2kw×2P ■Blade attachment: Outer diameter 510mm, shaft diameter 1 inch ■Blade shaft vertical movement: Ball screw feed with inverter control ■Left and right swivel angle: Automatic +60 degrees to -60 degrees ■Angle display: Digital display, in 0.05 degree increments ■Material hold-down: Top pressure, pneumatic type ■Auxiliary roller table: Left 3.5m, right 2.5m *Custom sizes available upon request. ■Cycle operation mode: IMC3000 Options ■Fixed-length ruler linked angle calculation software ■QR code/barcode input
Price range
Delivery Time
Applications/Examples of results
■ Aluminum sash cutting ■ Aluminum cap cutting ■ Aluminum frame material angle cutting ■ Aluminum exterior material cutting ■ Aluminum stair material cutting ■ Two-by-four slope cutting
Detailed information
Line up（4）
| Model number | overview |
|---|---|
| UCA-DM400 IMC3000-30 | ✅ Maximum product length: 3000 mm | Automatic swivel angle cutting capability at 90 degrees: height 145 mm × width 400 mm |
| UCA-DM400 IMC3000-40 | ✅ Maximum product length: 4000 mm | Automatic cutting capability at a turning angle of 90 degrees: Height 145 mm × Width 400 mm |
| UCA-DM400 IMC3000-50 | ✅ Maximum product length: 5000 mm | Automatic turning angle cutting capability at 90 degrees: height 145 mm × width 400 mm |
| UCA-DM400 IMC3000-60 | ✅Maximum product length: 6000 mm | Automatic swivel angle cutting capacity at 90 degrees: height 145 mm × width 400 mm |
