Quickly detachable sampling tubes! Soft sediments can be collected up to a depth of 2m, and muddy sediments up to 4m!

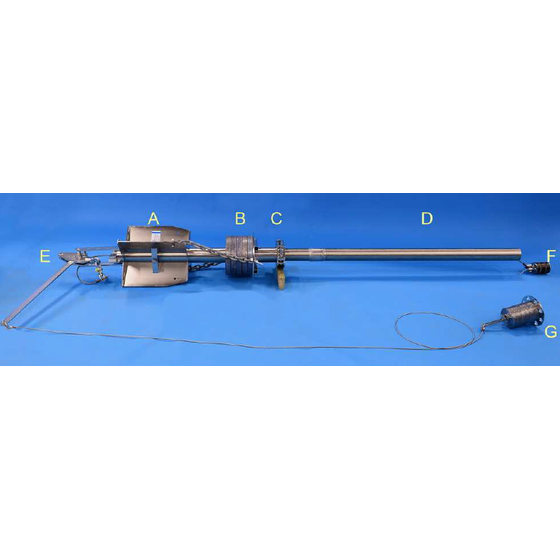

The "OSK 56LD405" is a robust stainless steel piston corer with a Kallenberg-style design. When the weight dropped into the sea reaches the seabed, if the main body is dropped from a position about 1 meter above the seabed, the weight of the weight will cause the sampling tube to penetrate the sediment. Additionally, the sampling tubes (sold separately) are available in four types: stainless steel/transparent PVC, with lengths of 2.2m and 4.4m. 【Features】 - The sampling tubes (sold separately) are available in four types: stainless steel/transparent PVC, with lengths of 2.2m and 4.4m. - The sampling tube can be quickly removed after sampling. - The four upper wing plates can accommodate up to 10 weights (optional). *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Main body: Material Stainless Steel/AISI316 ■Piston: Material Brass ■Weights ・Main body: Lead 28kg×2 ・Releaser: 30kg ■Total length (without sampling tube): 1700mm ■Weight: 270kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Soft sediments can be sampled up to a depth of 2m, and muddy sediments can be sampled up to a depth of 4m. *For more details, please refer to the PDF document or feel free to contact us.
