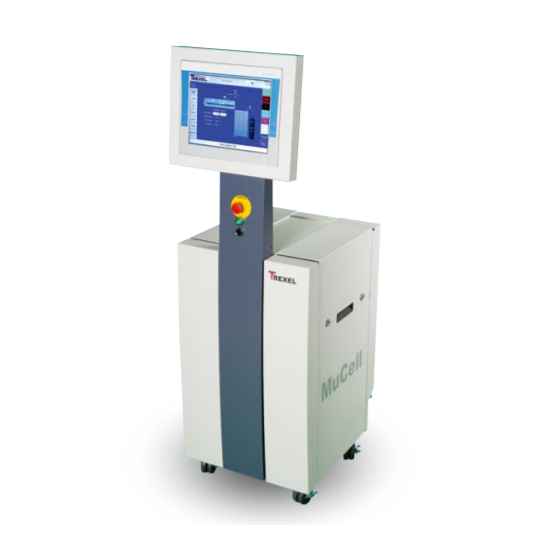

MuCell Microcellular Foaming Molding Equipment for Blow Molding B Series
MuCell Supercritical Fluid Supply Device for Blow Molding B Series
Lightweighting of blow-molded parts through foaming, reduction of plastic consumption, and improvement of thermal insulation are possible!
The business of Trexel Japan will be transferred to Matsui Manufacturing Co., Ltd. in February 2024. Please direct any inquiries to Matsui Manufacturing Co., Ltd. from now on. Trexel Japan Co., Ltd. introduces the "MuCell" microcellular foam molding system, which offers unique characteristics such as improved insulation and reduced resin usage for blow-molded products. Unlike chemical foaming, the ground material retains physical properties equivalent to virgin material, making it suitable for recycling and environmentally friendly production of consumer products. 【Features】 ■ Weight reduction and reduced resin usage ■ Improved insulation ■ Sustainability *For more details, please feel free to contact us.
Inquire About This Product
basic information
The MuCell microcellular foaming system developed by Trexel Inc. utilizes a physical foaming process that forms fine cells throughout the molded product by directly mixing and dissolving supercritical nitrogen and carbon dioxide at high pressure into the molten resin within the cylinder of the molding machine, and then extruding it into the mold to take advantage of the pressure drop. Since it uses nitrogen, which is chemically stable and extracted from the atmosphere, and carbon dioxide, a byproduct of industrial production, there is no need to consider issues related to chemical foaming, such as recyclability, the impact on resins like hydrolysis, or mold contamination. *For more details, please download the PDF or feel free to contact us. MuCell is a registered trademark of Trexel Inc.
Price range
Delivery Time
Applications/Examples of results
■Automotive components (air conditioning ducts, HVAC, etc.) ■Packaging field (blow bottles)
Line up（4）
| Model number | overview |
|---|---|
| B-100J | Intermittent supply compatible for small blow molded products |
| B-300J | Intermittent supply compatible for large blow molded products |
| B-120J | Continuous supply type for small blow molded products |
| B-320J | Continuous supply type for large blow molded products |
Company information
The business of Trexel Japan was transferred to Matsui Seisakusho Co., Ltd. in February 2024. Please contact Matsui Seisakusho for any inquiries moving forward. TEL: 03-5436-3521 https://matsui.net/product/mucell/ Thank you for your continued support. Trexel Japan Co., Ltd. provides total solutions for foam molding, not only through the sale of equipment but also from design to production, to help our customers create better products. By combining our industry-leading know-how with innovative resin foam products, we enable our customers to achieve cost reductions and environmental goals through weight reduction, reduced resin usage, improved dimensional accuracy, increased productivity, and reduced development man-hours. Please feel free to contact us with any requests. About Trexel Headquartered in Wilmington, just outside of Boston, Massachusetts, we have subsidiaries in Germany, Japan, and China. Our specialized technicians in each country provide global support to our customers.
