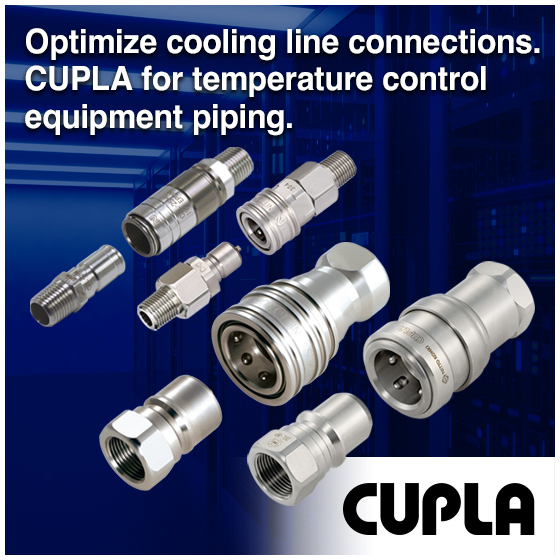

Optimize Cooling Line Connections! – Couplers for Temperature Control Equipment
Efficient cooling pipe coupling for heat-generating components in supercomputers
CUPLA for temperature control equipment enables smooth connection and disconnection of cooling water piping. We have a lineup of CUPLA with a unique valve that minimizes air inclusion on connection and liquid spillage on disconnection, and also CUPLA with various end configurations, sizes, body materials, and many other functions and specifications. Features [COMPACT ZEROSPILL CUPLA] - For low pressure, high flow type, for coolant piping - Compact size saves space - Valve structure reduces air inclusion on connection and liquid spillage when disconnecting - Easy operation, push-to-connect function - Automatic shut-off valves prevent fluid from spilling out on disconnection [ZEROSPILL CUPLA] - For medium pressure, general applications - Valve structure reduces air inclusion on connection and liquid spillage when disconnecting - Easy operation, push-to-connect function - Automatic shut-off valves prevent fluid from spilling out on disconnection [HI FLOW CUPLA] Semi-Standard series - For low pressure, water and temperature control equipment piping - Compact size saves space - High flow characteristics for enhanced cooling effect. - Automatic shut-off valves prevent fluid from spilling out on disconnection For more details, please refer to the PDF catalog or feel free to contact us.
Inquire About This Product
Related Videos
basic information
COMPACT ZEROSPILL CUPLA - Body material: Stainless Steel (SUS304), Nickel plated on Socket body - Size (Thread): 1/8", 1/4" - Working pressure: 1.0 MPa - Seal material (Working temperature range): Ethylene-propylene rubber (-10℃ to +100℃) ZEROSPILL CUPLA - Body material: Brass, Stainless Steel (SUS304) - Size (Thread): 1/4", 3/8", 1/2", 3/4", 1" - Working pressure: 3.5 MPa - Seal material (Working temperature range): Nitrile rubber (-20˚C to +80˚C), Fluoro rubber (-20˚C to +180˚C), Ethylene-propylene rubber (-40˚C to +150˚C) HI FLOW CUPLA *Semi-Standard series - Body material: Brass, Stainless Steel (SUS304) - Size (Thread): 1/4", 3/8", 1/2" - Working pressure: 1.0 MPa - Seal material (Working temperature range): Fluoro rubber (-20˚C to +180˚C), Ethylene-propylene rubber (-40˚C to +150˚C) - Standard seal material is fluoro rubber for brass body.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
