Moisture-proof coating agent, dries at room temperature in 3 minutes, non-flammable, free of regulated substances.
FG-3650 series
Numerous achievements in vehicle-mounted circuit boards. Environmentally friendly (non-organic solvent + non-hazardous + low odor) moisture-proof coating agent for printed circuit boards. Dries at room temperature without the need for heating.

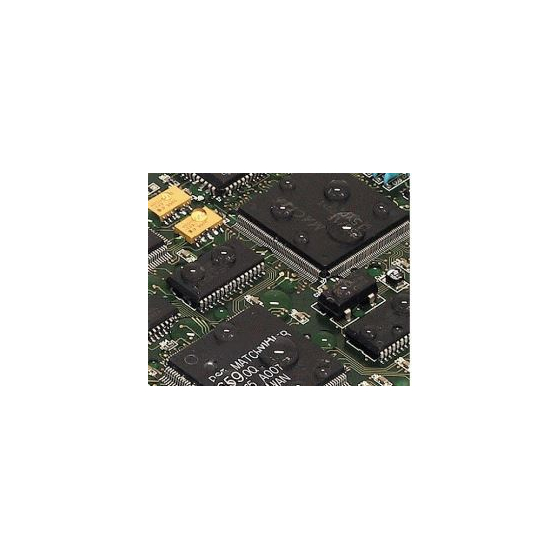

The protective coating agent for electronic circuit boards (conformal coating) "Fluorosurf FG-3650 series" exhibits protective functions such as moisture resistance, gasoline resistance, saltwater resistance, water resistance, acid resistance, resistance to lithium battery electrolyte, and water and oil repellency with a thin film coating. It has numerous achievements in waterproofing and insulation protection of electronic components, as well as moisture and waterproof coatings for mounted circuit boards. It is non-flammable and does not fall under organic solvent regulations, making it free from fire safety and occupational safety regulations. Additionally, it does not contain any PFOS, PFOA, or PFHxS. 【Performance Features】 ■ High moisture and water resistance → Compared to urethane and acrylic-based moisture-proof coatings of the same film thickness, it has four times the moisture-proof performance! It exhibits more than ten times the moisture resistance compared to silicone-based coatings. The increase in weight due to the coating film is minimized, making it ideal for lightweight devices such as mobile equipment. ■ High resistance to acidic substances such as lithium battery electrolytes → It can protect the circuit board in the event of electrolyte leakage, preventing fire accidents. ■ It exhibits strong protective effects against acidic gases, saline solutions, and corrosive liquids, also providing rust prevention effects. ■ Since it does not contain low molecular compounds, it will not cause contact failure of electrical contacts after application. *If you would like a free sample, please contact us.
Inquire About This Product
Related Videos
basic information
**Advantages in the Manufacturing Field** ■ It has low viscosity and is easy to handle. The workplace remains clean. It can be easily applied using brushes, spray coaters, or dip coaters. ■ It is a non-flammable, low-odor liquid, making it safe to use! → FluoroSurf FG-3650 is non-flammable and low in toxicity, ensuring safety. It is not subject to PRTR law or fire safety regulations. No explosion-proof equipment is required, and quantity management is unnecessary. ■ It is not classified as an organic solvent under the Industrial Safety and Health Act. → There is no need for management items such as workplace environmental measurements or organic solvent health checks for workers. ■ It dries at room temperature in 5-20 minutes after application! → Special equipment like heating furnaces is not necessary. ■ The pot life is virtually permanent. Zero waste. ■ Repairs can be made after coating. ■ There are models available with fluorescent dyes for application verification. *We sincerely apologize, but as our products are industrial chemical products, we cannot provide samples for personal use (in cases without legal entity), medical use, or applications involving contact with food.*
Price range
Delivery Time
Applications/Examples of results
【Protection Applications - Examples of Achievements】 ◎ Moisture and waterproof coating for implementation boards of mobile devices such as smartphones ◎ Migration prevention for aircraft and automotive boards, battery electrolyte countermeasures ◎ Copper pattern protection coating from corrosive gases ◎ Substrate protection coating from lithium battery electrolytes ◎ Prevention of metal ion migration (diffusion) ◎ Waterproof and moisture protection coating for outdoor equipment implementation boards such as air conditioner outdoor units and water heaters ◎ Protection coating for water-related boards in toilets, kitchens, etc. ◎ Protection coating for electronic boards and metal parts from sulfur gas and other substances ◎ Coating for LED sulfide countermeasures *For more details, please contact us.
Detailed information
-
In models with fluorescent dye, the application site can be visually confirmed after application by exposing it to a black light.
Line up（2）
| Model number | overview |
|---|---|
| FG-3650TH | Quick-drying model. Drying time at room temperature is less than 5 minutes. |
| FG-3650C | Model with slightly slower drying time. Drying time at room temperature is 10-20 minutes, compatible with jet dispensers. |
catalog（3）
Download All Catalogs
Company information
Our company, Fluoro Technology Co., Ltd., is a specialized manufacturer focusing on the following: * Fluorine-based water-repellent and oil-repellent coatings * Non-flammable conformal coatings (moisture-proof coatings for substrates) * Dry release agents, aerosol-type fluorine release agents * Anti-fouling (fingerprint prevention) coatings We are flexible and responsive to your company's needs. While there are many fluorine-based compounds available as high-performance materials, we specialize in room-temperature coatings that possess functions such as water-repellent, oil-repellent, anti-fouling, moisture-proofing, and release properties. Our company synthesizes fluorine resin components in-house, allowing us to manufacture fluorine-based coatings and water-repellent and oil-repellent treatments. This enables us to provide detailed customization of resin properties and changes in solvent specifications. Additionally, we have accumulated a wealth of technical information regarding usage methods and applications, which we can provide for various purposes. Please note that our products do not contain regulated substances (PFOS, PFOA, PFHxS, and long-chain PFCA with C8 or higher).
