Tohoku University Technology: Photoelectric conversion device (Optical rectenna): T19-437
The antenna captures light and extracts it as power ―Enables photoelectric conversion of MIR&FIR―

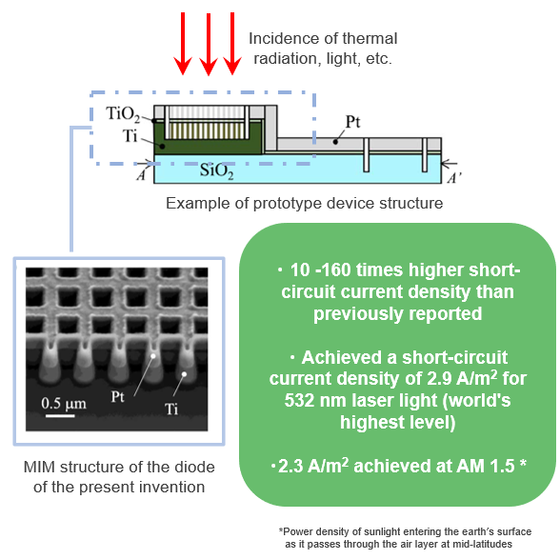

Rectenna composed of an antenna and a diode is known as a device for converting electromagnetic waves into electric power. The rectenna absorbs electromagnetic waves with an antenna and performs photoelectric conversion. In recent years, research on optical rectennas, in which rectenna technology is applied to the optical frequency domain, has been advanced, and results of photovoltaic power generation have been reported. However, the optical rectennas reported at present are difficult to manufacture or have low efficiency. The present invention has succeeded in significantly increasing the photoelectric conversion efficiency by introducing a special structure and material into the metal-dielectric-metal (MIM) tunnel diode and established an device based on hollow resonators.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
