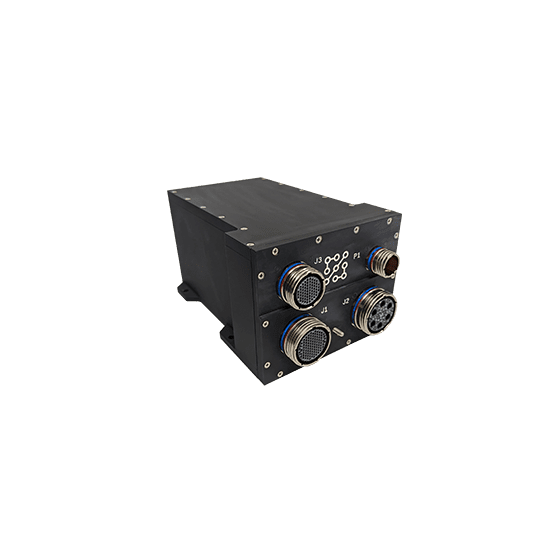

Helios optimizes size, weight, power consumption, and cost. It is a robust vision computer system that operates in harsh environments.
Our company handles embedded boards manufactured by Concurrent Technologies. Helios is a robust COTS (Commercial Off the Shelf) vision computer system optimized for size, weight, power consumption, and cost (SWaP-C). It is equipped with an Intel Core i7 processor and features exceptional graphics input/output capabilities. There are also abundant I/O options and large-capacity removable storage options available. - 11th generation Intel Core™ i7 processor - 16GB DDR4 RAM - NVIDIA P2000 GPU - 3G-SDI input/output - Optional ARINC 429 or MIL-STD-1553 - Optional 4 TB removable storage - Operating temperature -40°C to 55°C - IP67 dustproof and waterproof aluminum chassis
Inquire About This Product
basic information
Processing Engine - Intel Core™ i7-1185GRE 1.8 GHz (15 W) - 16 GBytes DDR4 DRAM Graphical Processing Engine - NVIDIA Pascal™ GP107 (P2000) Optional Storage Capabilities - supports 1 removable SATA based storage module - capacity of 4 TBytes I/O Capabilities - 1x DisplayPort Output from CPU (4K60) - 2x DVI Output from GPU (4K60) - 2x 3G-SDI Output - 4x 3G-SDI Input - 2x CVBS Input - optional ARINC 429 7T/10R - optional 4x MIL-STD-1553 power consumption 100 W *For more details, please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please feel free to contact us. Military use, etc.
catalog（3）
Download All Catalogs
Company information
Ascot Corporation is a technology-oriented specialized trading company that delivers a wide range of products, technologies, and services tailored to customer needs, primarily in the fields of space, defense, and industrial applications, with the motto of "Technology, Trust, and Speed." We aim to be a specialized group in high-tech marketing that actively engages in cutting-edge technology and pursues quality, utilizing the information power and expertise cultivated over many years through our domestic and international networks in an increasingly globalized, information-driven, and diversified market.
