Introducing products with a simple and sturdy structure! Achieved low costs through a unique production line.
The "Wooden Floor Vent" is a semi-custom product made from Hokkaido-sourced hardwood, featuring the unique texture that only wood can provide. It uses a flame-retardant mesh and is easy to install (screws for fixing are included). Additionally, you can choose the length, floor thickness, and color. Please feel free to contact us when placing an order. 【Features】 ■ Simple and sturdy structure ■ Uses flame-retardant mesh ■ Easy installation (screws for fixing included) ■ Low-cost production with a unique production line ■ Options for length and color *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information

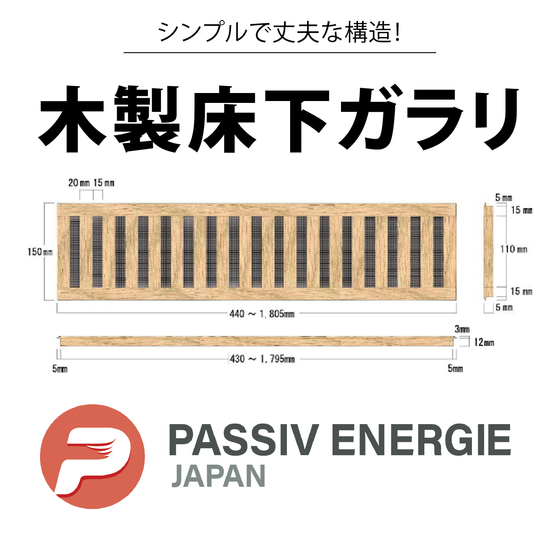

【Specifications】 ■Size - Length can be selected from 440/615/790/1,210/1,630/1,805mm - Available in 12mm thickness - Width is fixed at 150mm for actual dimensions and 140mm for installation dimensions ■Effective Opening Area (αA) - Air supply direction = 190.8cm²/m - Exhaust direction = 210.4cm²/m ■Color - Available in four types: Clear, Dark Brown, White, and Unfinished *For more details, please refer to the PDF document or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the PDF document or feel free to contact us.*
catalog（1）
Download All Catalogs
Company information
Our company is engaged in the manufacturing and sales of the ductless heat exchange ventilation system "Seseragi," as well as activities related to the environment and energy conservation, and the promotion and dissemination of improved technologies. Please feel free to consult us when you need our services.
