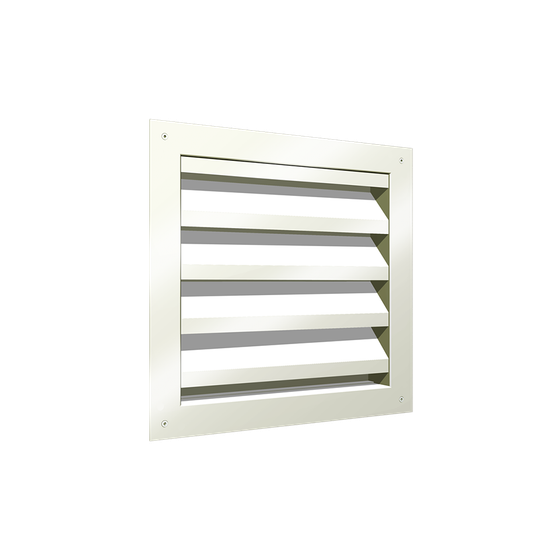

Various uses: 4 types of rectangular steel grille series.
It is a highly flexible grille made of steel. We offer four types: "GTS," a single-sided flange surface-mounted type; "GT," a double-sided flange clamping type; "GTI," an indoor partition type that allows you to specify the projection dimensions according to wall thickness; and "GTO," an outdoor specification. 【Lineup】 ■ Single-sided flange type with free wall thickness! "GTS" ■ Double-sided flange clamping type! "GT" ■ Compatible with building walls and allows specification of projection dimensions! "GTI" ■ Can be used on exterior walls with a water drainage feature! "GTO" *For more details, please refer to the materials. Feel free to contact us as well.
Inquire About This Product
basic information
【Features】 ■ Available in two types of blade shapes: gabled and single slope※1 ■ Easy to install on walls and doors ■ Made of 1.5mm thick steel plate for durability ■ Can be selected with anti-rust or specified color baked paint. ■ High dimensional accuracy produced by a cleanroom door manufacturer, all custom-made in 1mm increments※2 ◇GT A rectangular steel grille that is installed by sandwiching it between the wall or door thickness with flanges on both sides. ◇GTS A convenient rectangular steel grille with a flange on one side, allowing for versatile installation and screw fixation. ◇GTI A rectangular steel grille that allows for flexible setting of the projection dimensions according to the thickness of the wall being installed. It supports both welded fixation and screw fixation using pieces. ◇GTO A rectangular steel grille that comes standard with a simple canopy and water drainage, suitable for use on exterior walls. ※ The blades have a rain return feature, but they are not completely waterproof. In the case of rain accompanied by wind, rainwater may enter.
Price information
Since this is a custom-made product, we will provide a quote each time.
Delivery Time
※Since this is a custom-made product, the price may vary depending on the details. Please feel free to contact us.
Applications/Examples of results
Bento factory, side dish factory, seafood processing plant, meat processing plant, dairy processing plant, confectionery factory, bakery, fruit and vegetable market, soft drink factory, sake brewery, school lunch center Semiconductor device manufacturing, printed circuit board manufacturing, LCD panel manufacturing, chemicals, glass curing room, various painting booths University hospital, general hospital/clinic, cancer center, blood center, health center Pharmaceutical manufacturers, cosmetics manufacturers Public and private university research facilities, agricultural high school and technical high school research facilities, prefectural health and hygiene research institutes, machinery manufacturer environmental testing facilities, general corporate research and development facilities Supermarkets, convenience stores, pharmacies Transportation company logistics center, food manufacturer logistics warehouse, distribution center
Detailed information
-
Regarding vertical bars, a middle bar is inserted in the vertical direction depending on the type of frame and the W dimension.
-
GT is a square steel grille that is installed by clamping it between walls or doors to match their thickness with flanges on both sides.
-
GTS is a convenient square steel grille with a flange on one side, designed for easy installation without selecting a specific mounting counterpart, secured by screws.
-
GTI is a square steel grille that allows for flexible setting of the dimensions based on the thickness of the wall to which it will be attached.
-
GTO is a square steel gallery equipped with a simple canopy and water drainage, suitable for use on exterior walls.
-
Insect net option (example of GUO)
