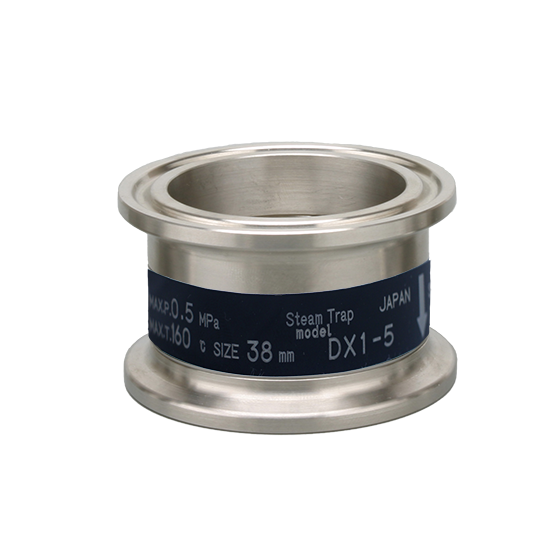

Dedicated to sanitary piping! Easy to attach and detach with a Heller connection.
The diaphragm-type steam trap is a trap that utilizes the temperature difference between the steam and condensate flowing into the trap to open and close the valve. 【Features】 1. Dedicated for sanitary piping Made entirely of stainless steel, it is resistant to rust and dirt! The ferrule connection allows for easy attachment and detachment, making daily cleaning effortless. 2. Prevents drain retention It is also possible to prevent drain retention within the trap by providing an orifice. 3. Compact design! The face-to-face dimension is only 30 mm. It can be used even in crowded piping systems.
Inquire About This Product
basic information
Nominal diameter: 1.5S Maximum operating pressure: 0.5MPa Maximum operating temperature: 160℃ Body material: SUS316 (stainless steel) Connection: Heliport
Price range
Delivery Time
Applications/Examples of results
Drain discharge of sanitary steam piping Drain discharge during SIP (Static Sterilization) process with steam
Detailed information
-
This is the emission flow diagram of DX1.
catalog（2）
Download All Catalogs
Company information
Miyawaki is a specialized manufacturer of steam system products with over 90 years of history. Our product lineup includes steam traps, steam water heaters, and fluid control equipment, widely adopted in industries such as oil refining, chemical plants, and food processing. With decades of technical expertise and proven experience, we support the development of efficient and safe steam systems. From standard products to custom specifications, we offer flexible solutions tailored to existing installations. Delivering trusted quality and service to customers worldwide—feel free to contact us anytime.
