Tohoku University Technology: Method to measure independent elastic modulus without restriction on material type, form and measurement environment : T22-140
Possible to measure 9 independent elastic modulus in a single vibration experiment and analysis without sample machining or surface treatment

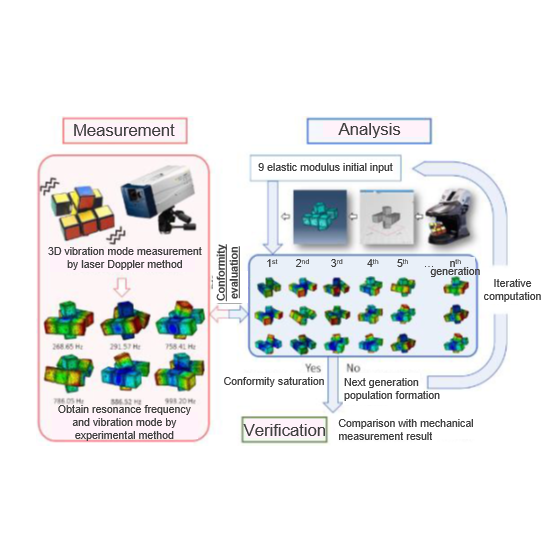

The measurement of elastic modulus, which is a fundamental parameter, is essential to characterize the material property. As an example of object with a simple linear shape, such as a stick, the elastic modulus can be obtained experimentally by tensile testing. Today, a wide variety of object with complex shape can be formed due to the recent development of 3D printer technology. On the other hand, the elastic modulus of such object with complex shape having mechanical anisotropy, was difficult to simply measure by the conventional method. This invention is about a simple method for measuring elastic modulus of object with complex shape having mechanical anisotropy. This invention compares at first the vibration mode obtained experimentally by the object resonance frequency using ultrasonic resonance method, with the estimated vibration mode. Then, the elastic modulus is determined after the inverse analysis so that the estimated vibration mode matches the experimental value. The elastic modulus is determined with high precision by applying an algorithmic tip to this comparison. The most significant feature of this measurement method is its simplicity since it requires only one vibration experiment and analysis to measure the 9 independent elastic modulus.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
