Three-stage collinear antenna with lightning rod at specified frequency within 140-170 MHz.

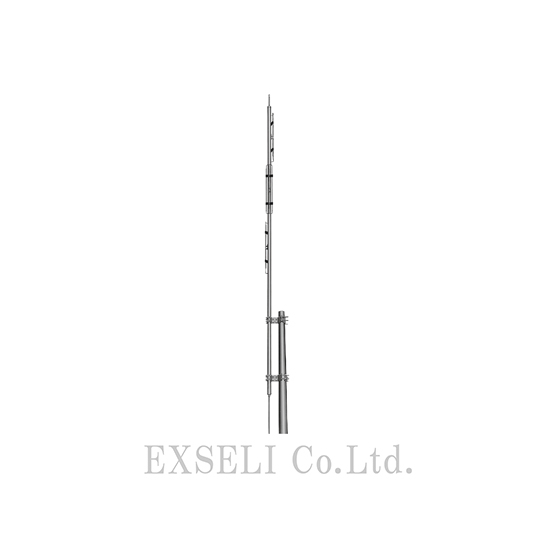

The 3CL-150 is a 150MHz band lightning rod-equipped three-stage collinear antenna manufactured by Nippon Antenna. * A collinear antenna is a high-gain antenna used for radio communication, commonly employed in the VHF to UHF range. * It is an antenna for VHF fixed station radios. * It operates within the specified frequency range of 140 to 170MHz. Please specify the center frequency (fo) in MHz when placing your order. * This is a vertical polarization high-gain antenna with dipole antennas arranged at 120° intervals around a steel pole or vertically above it. * A dipole antenna is an antenna that is half the wavelength (1/2λ) in length. It refers to an antenna that can transmit and receive radio waves in all horizontal directions when installed vertically. * The connector on the antenna side is an N-J type. * The antenna side connector is only N-J. It can be converted to other connectors using an extension coaxial cable. * This is an omnidirectional antenna with a lightning rod. * An omnidirectional antenna refers to an antenna that can transmit and receive radio waves from all directions. * The antenna mounting brackets compatible with this product are B-4 and B-8-1(D). * For more details, please feel free to contact our company.
Inquire About This Product
basic information
●Made to order. ●Specifications ・Antenna type: 3-stage collinear antenna ・Model name: 3CL-150 ・Application: For fixed stations, vertical polarization ・Operating frequency: Designated frequency within 140–170MHz ・Input impedance: Nominal 50Ω ・VSWR: 1.5 or less ・Gain (standard value): Dipole ratio 3dB, absolute gain 5.15dB ・Directivity (standard value): E-plane half-power beamwidth 18°, H-plane omnidirectional ・Insulation resistance: At the feed point, 500MΩ or more at DC500V when dry ・Withstand voltage: No abnormalities when AC1000V is applied for 1 minute at the feed point when dry ・Feed connector: N-J type ・Weight: Approximately 33kg ・Wind surface area: Approximately 0.45 square meters ・Maximum wind load: Approximately 984N at 60m/sec ・Wind resistance: Maximum instantaneous wind speed of 60m/sec *For more details, please feel free to contact us.
Price information
Manufacturer's suggested retail price: 663,000 yen (excluding tax) We aim to sell at a lower price than anywhere else. Please contact us for our selling price.
Price range
P4
Delivery Time
Applications/Examples of results
【Usage Example】 ■Outdoor etc.
