Collinear antenna with reflective elements for fixed station radio equipment operating at frequencies from 260 MHz to 275 MHz.

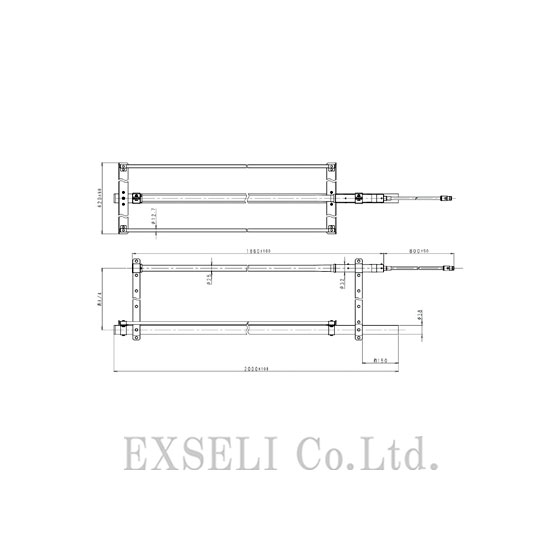

The HGK-2501B1 (HGK2501B1) is a collinear antenna with a reflective element manufactured by Nippon Antenna, designed for the 260 MHz band. * A collinear antenna is a high-gain antenna used primarily for radio communication, commonly employed in the VHF to UHF frequency range. * It is a directional antenna for fixed station radios operating in the frequency range of 260 MHz to 275 MHz. * By using a reflective element with a three-stage collinear antenna, it achieves directional characteristics. * This product is adjusted to have a front-to-back ratio of 20 dB at 180°. * It comes with an NJ connector, and the feed cable is 8D-2V, approximately 80 cm long. * The compatible mounting brackets are B-3-1 and B-8-2(B). * For more details, please feel free to contact our company.
Inquire About This Product
basic information
● The mast, mounting brackets, and coaxial cable are sold separately. ● Specifications ・Antenna type: Collinear antenna with reflecting elements ・Model name: HGK-2501B1 ・Product code: 2401410 ・Application: For fixed stations, vertical polarization ・Operating frequency: 260–275MHz ・Input impedance: Nominal 50Ω ・VSWR: 1.5 or less ・Gain [standard value]: 6.15dBi ・Directivity [standard value]: E-plane half-power beamwidth 40° H-plane 180° ・Insulation resistance: At the feed point, 500MΩ or more at DC500V when dry ・Withstanding voltage: No abnormalities when AC1000V is applied for 1 minute at the feed point when dry ・Feed connector: N-J type ・Weight: Approximately 9kg ・Wind receiving area: Approximately 0.18 square meters ・Maximum wind load: Approximately 397N ・Wind speed resistance: Maximum instantaneous wind speed of 60m/sec 【Compatible models】 IC-DV6010S3 * Coaxial cable with separately sold NP and MP connectors is required * For more details, please feel free to contact us.
Price information
Manufacturer's suggested retail price: 286,000 yen (excluding tax) We aim to sell at a lower price than anywhere else. Please contact us for our selling price.
Price range
P3
Delivery Time
Applications/Examples of results
【Usage Example】 ■Outdoor etc.
