This is our original antenna that uses a cable-type design for RFID, allowing for wide-range detection of RF tags and enabling batch reading.
【Features】 ◆ Since it is an antenna in the form of a cable, it can be wired to difficult-to-install locations (small spaces). ◆ The entire cable functions as an antenna, allowing for wide-range reading. ◆ The length and thickness of the cable can be selected according to the installation location. ◆ It has obtained a technical standards conformity certificate for specific low-power RF tag reading devices, so no radio wave usage application is required. 【Benefits of Implementation】 ◆ The ability to read multiple RF tags enables faster reading, reducing the burden on operators. ◆ It allows for the automatic recognition of parts and products stored on shelves (such as cabinets), easing tasks like inventory. ◆ It enables the automatic recognition of parts and products passing through entrances and exits, automating tracking management.
Inquire About This Product
basic information
【Antenna Type】 Cable-type omnidirectional antenna 【Operating Frequency】 916.8–922.2 MHz 【Polarization】 Linear polarization 【Gain】 0.7 dBi or less (3D-3m), 0.6 dBi or less (1.5D-3m) 【Connector】 BNC-J 【Weight】 Approximately 140g (3D-3m), approximately 60g (1.5D-3m) 【Length】 Total length 3m (※ Extension cable connection possible) 【Element Size】 Ф8mm/L12.5mm (3D-3m), Ф3.6mm/L12.5mm (1.5D-3m)
Price range
Delivery Time
Applications/Examples of results

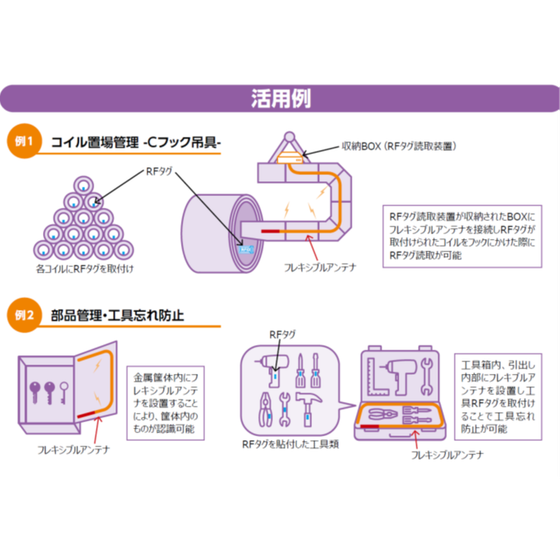

【Applicable Scenarios】 - Recognition of crane-lifted loads and management of parts within metal enclosures - Management of items stored in shelves (cabinets) and desks (e.g., USBs and keys for company vehicles) - Management of equipment being taken in and out of entrances - Recognition of cables within cable ducts - Material management in spare parts storage *For more details, please refer to the PDF document or feel free to contact us.*
