A compact pump that achieves maintenance-free and oil-free operation! Ideal as a vacuum source for lightweight component suction transport systems!

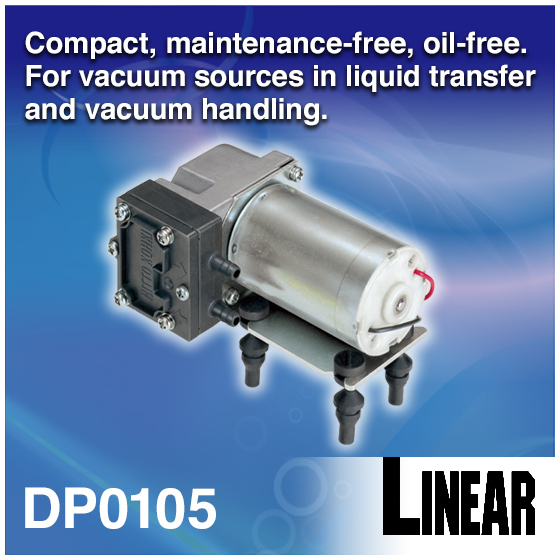

This is a vacuum pump/compressor that uses a DC brush motor. The sliding parts adopt a cup seal method, achieving maintenance-free, oil-free operation and a high compression ratio even in a compact size. It can be used as an air source for liquid transport and stirring, as well as a vacuum source for lightweight component suction transport systems, making it suitable for integration into industrial and consumer equipment. We offer both DC12V and DC24V types. 【Features】 ■ Compact and lightweight ■ Dual-purpose vacuum pump/compressor ■ Oil-free structure
Inquire About This Product
Related Videos
basic information
【Specifications】(Model: DP0105-X1 DC12V Type) ■Achievable Vacuum Level: -66.6kPa ■Air Discharge Volume: 2.8L/min ■Rated Voltage: DC12V ■Maximum Pressure: 250kPa ■Maximum Current: 1.9A ■Operating Pressure Range: -66.6 to 100kPa ■Rated Time: 30 minutes ■Service Life: 2,000 hours (MTTF) ■Mounting Dimensions: 42(L)×24.5(W) ■Body Weight: 0.36kg
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
