Adjustable air discharge volume! Operates only when necessary to achieve low power consumption and high efficiency.

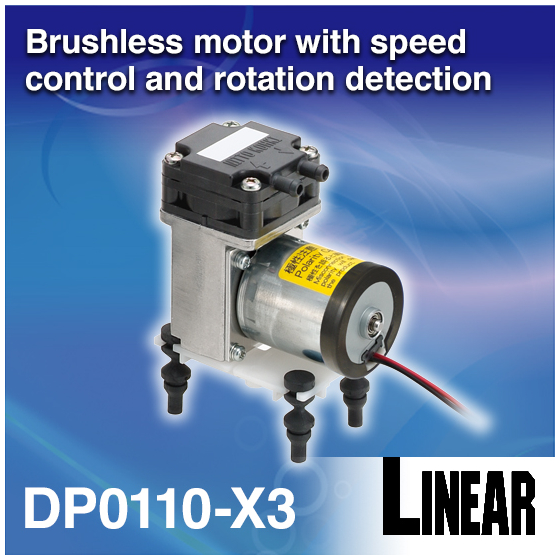

This is a vacuum pump/compressor that uses a dedicated DC brushless motor that can control motor rotation with pulse width modulation (PWM). By controlling the motor's rotation, it is possible to adjust the amount of air discharged from the pump. It also features a function to detect motor rotation speed. 【Features】 ■ Motor rotation control → Operates only when necessary, achieving low power consumption and high efficiency. The amount of air generated during operation can be controlled. ■ Rotation speed detection function → Helps in detecting abnormalities in the device.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■Achieved vacuum level: -66.6kPa ■Air discharge volume: 7.5L/min ■Rated voltage: DC12V ■Maximum pressure: 150kPa ■Maximum current: 1.4A ■Operating pressure range: -66.6 to 150kPa ■Rated time: Continuous ■Service life: 8,000 hours (MTTF) ■Mounting dimensions: 50(L)×30(W) ■Body weight: 0.3kg
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
