Connector for board-to-board (FPC) connection | FB35AW6 series

Connector with a height of 0.6mm, 0.35mm pitch, capable of carrying 7.0A, ultra-low profile and compact power composite type.

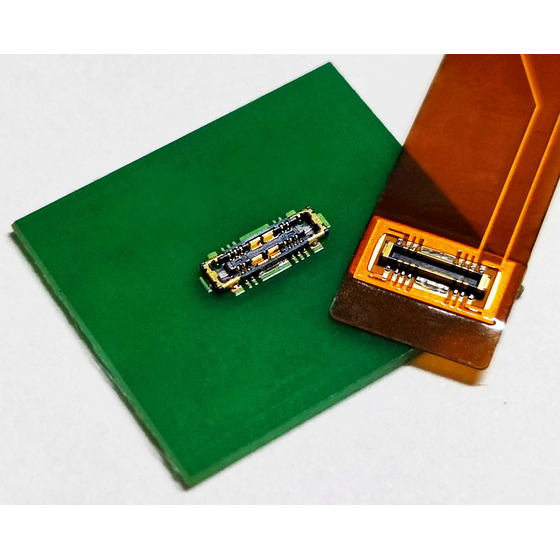

The FB35AW6 series connector is a board-to-board (FPC) connector with a 0.35mm pitch, a mating height of 0.6mm, and a depth of 1.95mm. This connector features a combined terminal arrangement for signal contacts and power contacts. 【Features】 ■ Power contacts capable of carrying 7A ■ Pitch of 0.35mm, product width of 1.95mm, mating height of 0.6mm ■ Available core counts: 10, 14, 18, 20, 22 cores ■ Adoption of a metal cap design for a robust structure ■ The metal cap can carry up to 2.5A as a power contact ■ Metal is placed in the center of the receptacle connector: enhanced strength through an inner metal armor structure ■ Highly reliable two-point contact structure ■ Improved click feel during mating and increased extraction force *For more details, please refer to the PDF document or feel free to contact us.
