Tohoku Univ. Technology : Batch fabrication method by laminating method : T24-029
Batch fabricating of complex parts using 3D printing robots

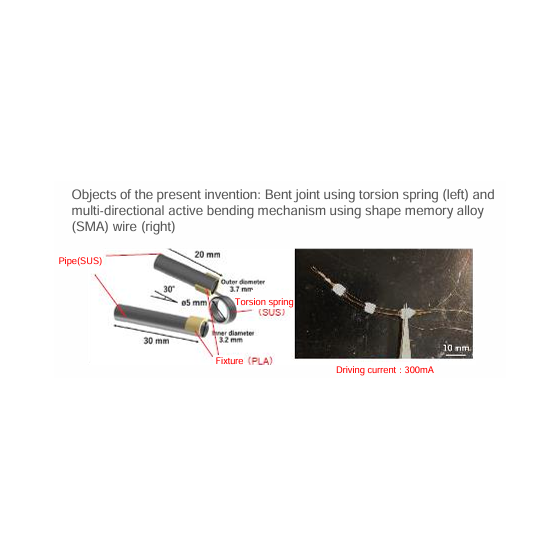

In the fabricating industry, with the diversification of customer needs, the demand for high-mix, low-volume production and complex fabricating technology is increasing. In particular, for endoscopes, which are produced in high-mix, low-volume production, the parts processing and assembly work are generally carried out manually by skilled workers. However, there have been problems such as variations due to individual differences and time required for production by hand. In order to solve the above problems, the present invention has developed a method for automatically and collectively creating complex parts fabricating and assembly processes using a 3D printer and a robot arm. Specifically, a fixing table and a jig are laminated with a soluble material, and the parts are arranged on the main body using a robot arm. Then, the fixing table and the jig are dissolved (see right figure). We were able to test and confirm the operation of this technology by applying it to the joint of a chopstick endoscope used in otology (upper left figure) and a multi directional active bending mechanism using shape memory alloy (SMA) wire (upper right figure). In the future, we aim to apply this technology to various minimally invasive medical devices and some consumer products by mounting various micro electronic components.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
