14 bits, 2 channels at 500 MS/s, 250 MHz bandwidth

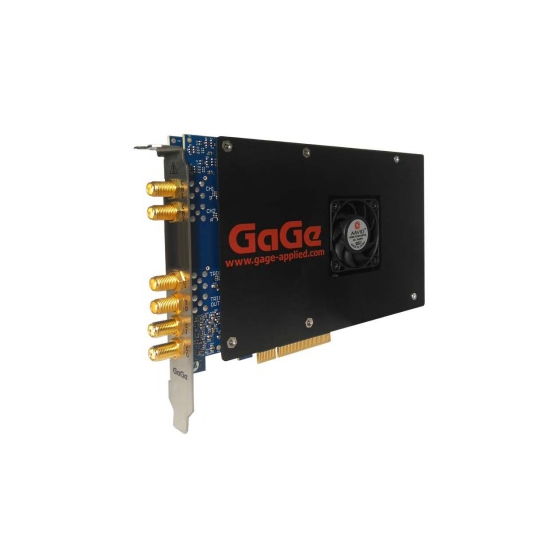

This is a 2-channel A/D conversion board with a maximum resolution of 14 bits that supports an A/D sampling rate of up to 250 MS/s with an input bandwidth of up to 125 MHz.
Inquire About This Product
basic information
● 14-bit vertical A/D resolution with 2 digitizing input channels ● Maximum sampling rate of 250 MS/s per channel ● Dedicated set of 50Ω input channel pair and 1MΩ input channel pair (DC coupling) (AC option available) ● 125 MHz analog input bandwidth ● Standard 4 GS (8 GB) onboard dual-port sample memory ● 6 GB/s PCIe Gen3 x8 transfer rate (when using onboard memory) ● 1 GB/s PCIe Gen3 x8 real-time streaming rate to host ● Easy integration with external or 10 MHz reference clock input and clock output
Price range
Delivery Time
Applications/Examples of results
Wideband signal analysis Broadband stimulus/response testing Satellite communication testing Radar design and testing Electronic warfare (EW) testing Signal intelligence (SIGINT) Spectrum monitoring Ultrasound imaging Non-destructive testing (NDT) Mass spectrometry Time of flight (ToF) Light detection and ranging (LiDAR) Life sciences Particle physics
