Compliant with CAN FD! Full compatibility with J1939, CANopen, NMEA 2000, and DeviceNet.

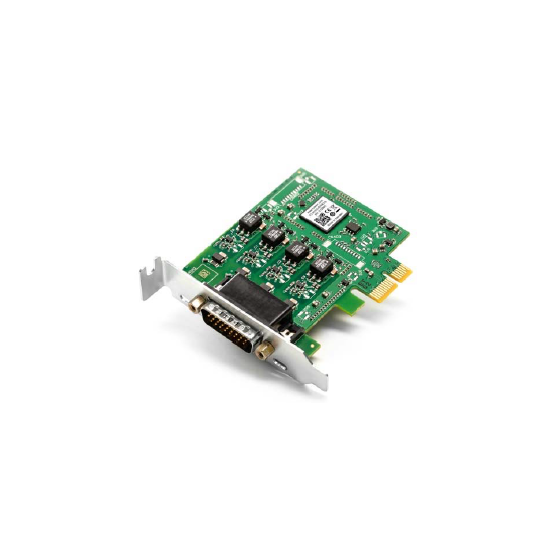

The Kvaser PCIEcan 4xHS is a highly integrated high-speed Controller Area Network (CAN) card. It allows the addition of four high-speed CAN network channels to various standard computer boards equipped with PCI Express functionality. This add-on board features silent mode, error frame detection, and an onboard buffer. Its compact housing is suitable for many embedded data acquisition systems and includes a galvanically isolated CAN bus driver. It supports a wide operating temperature range from 0°C to +85°C. 【Features】 - Supports CAN FD - Quick and easy plug-and-play installation - Supports high-speed CAN (ISO 11898-2) - The slim card (86x69mm) enables extremely compact systems - Supports silent mode for analysis tools - Supports Kvaser Linx *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Technical Specifications (Partial)】 ■Received messages per second: 20000 mps ■Sent messages per second: 20000 mps ■Channels: 4 ■Interface: PCI Express ■OS: Windows 10, 8, 7, Vista, XP, and Linux ■Connector: 26-pin HD D-SUB ■Galvanic isolation: Yes *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
