From high-resolution pattern inspection at L/S = 5/5 µm to laser via inspection, we provide the optimal solution for all your visual inspection needs.
We offer a comprehensive lineup of AOI systems covering a wide range of substrates—from high-end models supporting minimum line/space widths of 5/5 µm to mid-range models. Our systems deliver ultra-high-precision inspection for everything from circuit patterns to laser vias. In addition to standard circuit and laser via inspection, our solutions are also capable of measuring and outputting line/space widths as well as top/bottom diameters of vias. 【Rich Options】 - Verify inspection results directly on a PC using defect images saved by the inspection system—no dedicated verification machine required. - Significantly reduce verification workload with AI-based automatic defect classification. - Analyze defect trends by type and location using panel-level data mapping, enabling effective feedback to upstream processes. - Offline teaching system allows recipe creation without occupying the inspection equipment. - Optional server system available for storing inspection results.
Inquire About This Product
basic information
■Applicable Line/Space SX5600: 5μm/5μm～ SX3600: 10μm/10μm～ SX1000: 15μm/15μm～ ■Target Product Size SX5600: 600mm × 600mm SX3600: 600mm × 600mm SX1000: 300mm × 400mm
Price range
Delivery Time
Applications/Examples of results
In addition to standard printed circuit boards, we can customize according to customer requests, including frames and JEDEC tray inspections.
Detailed information
-
Numerous achievements in high-end IC package substrates for CPUs, GPUs, and more.
Line up（3）
| Model number | overview |
|---|---|

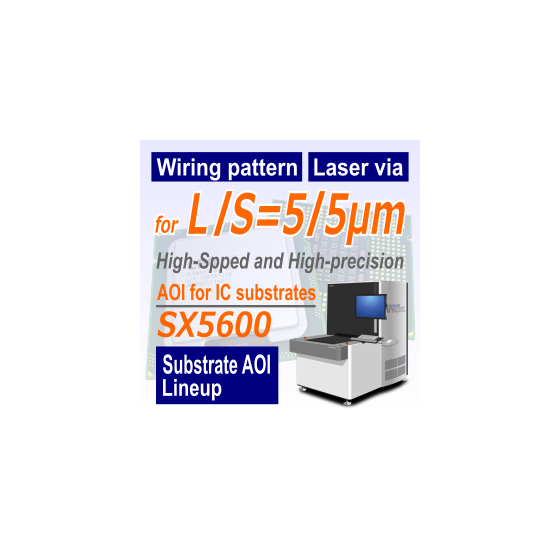

| SX5600 | High-end model compatible with minimum L/S=5/5μm |
| SX3600 | Bestselling model with numerous achievements in laser via inspection |
| SX1000 | Model ideal for inspecting sheet-type FPC and JEDEC trays with a compact body |
Company information
Inspec has developed and refined all the necessary optical sensing technology, image processing technology, mechatronics technology, precision machinery technology, and laser technology in-house as a manufacturer of inspection equipment, reaching a world-class level. Utilizing our proprietary technologies and the know-how accumulated over more than 40 years since our founding, we will continue to challenge the unseen tomorrow. You can trust Inspec with your circuit board inspection needs.
