Renewed and newly launched! Achieving a more compact design and improved durability compared to the previous model.

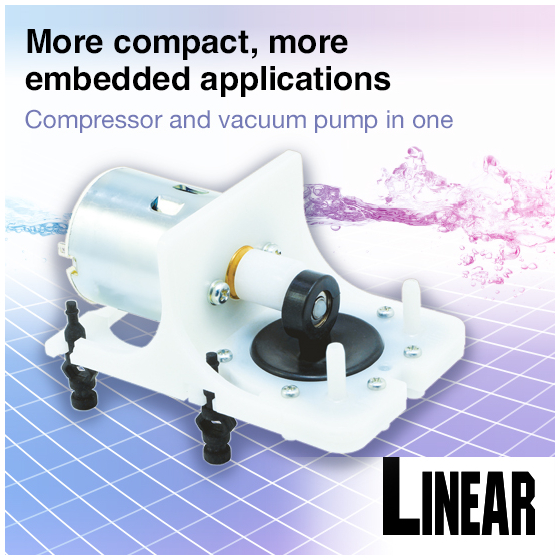

The DC pump "DP0125A" is a vacuum pump and compressor combined pump that uses a DC motor. It has become more compact compared to conventional models and has achieved 2.5 times the durability. (*Compared to the old model DP0125) It is suitable for integration into devices such as disinfectant spray and caregiving toothbrushes. 【Features】 1. Compact 2. Achieves 2.5 times durability (*Compared to the old model DP0125) 3. Dual function as a vacuum pump and compressor *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
Vacuum level: -33.3kPa {-250mmHg}* Air discharge volume: 2.5L/min Rated voltage: DC12V Maximum pressure: 30kPa {0.3kgf/cm2} Mean time to failure (MTTF): 1000 hours Inlet size: φ3mm (outer diameter) Outlet size: φ3mm (outer diameter) Body weight: 75g *Please consult us if continuous use is required at pressures other than -33.3kPa to 30kPa.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
