Easy operation for "non-contact," "non-destructive," "high-speed," "high-precision," and "wide-range" measurement.

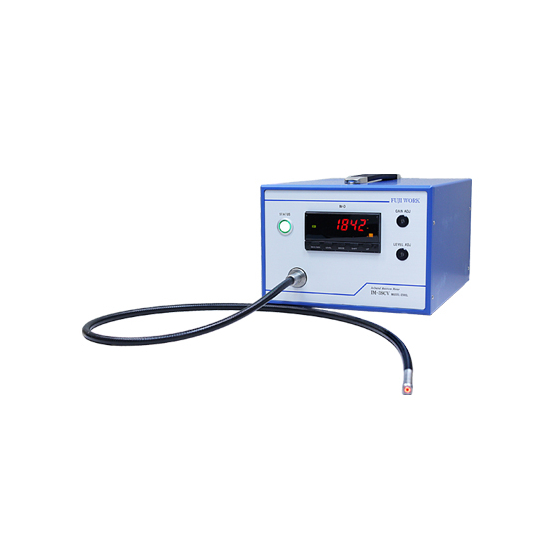

Improvements in the three-wavelength method achieve ultimate high-resolution measurement. Infrared enables more precise moisture measurement. The IM-3SCV MODEL-1900 has been upgraded to the IM-3SCV MODEL-2000. Feature 1: Fiber method allows measurement in diverse environments - Using fiber in the measurement section minimizes the influence of environmental factors such as temperature changes in the measurement area. - It can be installed in compact spaces even for measurements in narrow areas. - In locations with potential explosion hazards, the fiber separates the electrical systems, allowing for safe measurements. Feature 2: Real-time measurement with high-speed analog computation - By performing analog computation, there is almost no time lag, enabling real-time measurements while also allowing for high-resolution measurements. Feature 3: Stable measurements with the three-wavelength method - The three-wavelength method achieves high-resolution measurement. Feature 4: Handy type for easy portability - It is easy to carry, avoiding moisture absorption during sample transport, and allows for simple measurements on-site.
Inquire About This Product
basic information
□ Measurement method / Infrared reflection type three-wavelength method □ Optical method / Integrated light emission and reception bundle fiber method □ Measurement distance / 5 to 60 mm □ Measurement diameter / Φ5 to Φ30 (Φ17 mm at a measurement distance of 30 mm) □ Light source / Tungsten lamp (average lifespan approximately 20,000 hours) □ Power supply / AC100-240V±10% 50/60Hz □ Power consumption / 40W □ Dimensions (measuring instrument body) / 220w × 155h × 300d mm □ Weight / Approximately 7 kg
Price range
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
It can be used for moisture measurement, quality control, energy saving, etc., in various industrial fields. Semiconductors, liquid crystals, films, chemicals, textiles, paper, solvents (liquids), powders, ceramics, paints, and others.
catalog（1）
Download All Catalogs
Company information
The Product Development Division supports companies in the fields of prototyping, development, and research using the technology and experience accumulated as a manufacturer. We are engaged in the development, manufacturing, and sales of precision instruments, primarily focusing on measuring devices. Currently, we mainly design and sell continuous thickness measuring machines, thickness gauges, infrared moisture meters, and custom measuring instruments.
