Achieves a damage threshold exceeding >30 J/cm² (1064 nm, 10 ns) with IBS coating.

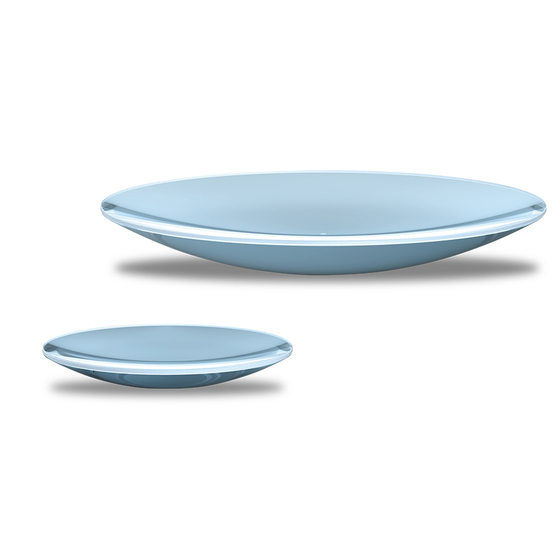

Manufacturer: OPTOMAN (Lithuania) OPTOMAN's lenses are coated with IBS and optimized for high-power laser applications. This means they can be used for intra-cavity and multi-kW CW lasers, as well as ultra-fast pulse applications. To achieve this performance, optimized low-absorption fused silica is used. There is no thermal shift during use. The robust, wear-resistant coating is close to bulk and provides fatigue-free, environmentally independent performance. The state-of-the-art IBS coating technology enables excellent features such as high damage thresholds, low absorption, and low scattering. OPTOMAN offers custom solutions for wavelength, reflection, transmission rate, SP polarization, incident angle, branching ratio, damage threshold, and more.
Inquire About This Product
Related Videos
basic information
● Diameter: 5 to 101.6 mm ● Spectral range: 200 to 6000 nm ● High purity fused quartz optimized for the desired wavelength range; bulk absorption below 1 ppm/cm ● Sapphire and YAG substrates for mid-infrared wavelength applications ● Convex, concave, meniscus shapes, and cylindrical lenses ● Single wavelength, multi-wavelength, broadband designs
Price range
Delivery Time
Applications/Examples of results
● High-power laser ● Laser processing equipment
catalog（2）
Download All Catalogs
Company information
San-In Instrument Co., Ltd. imports and sells optical communication and laser products utilizing advanced technology as an agent from various countries around the world. ■ Laser oscillators (femtosecond lasers/picosecond lasers/nanosecond lasers/CW lasers/wavelength-tunable lasers/narrow linewidth lasers, etc.) ■ Optical communication equipment (transceivers/optical amplifiers/WDM/couplers, etc.) ■ Sensing-related (various optical detectors) ■ Spectroscopy-related (spectrometers/optical fiber probes/hyperspectral cameras, etc.) ■ Optical systems (IBS-coated optical systems/super high vacuum windows/retroreflectors, etc.)
