IC testing is possible from fine pitch to large packages using a test socket with a sheet-type contactor that can be easily attached.

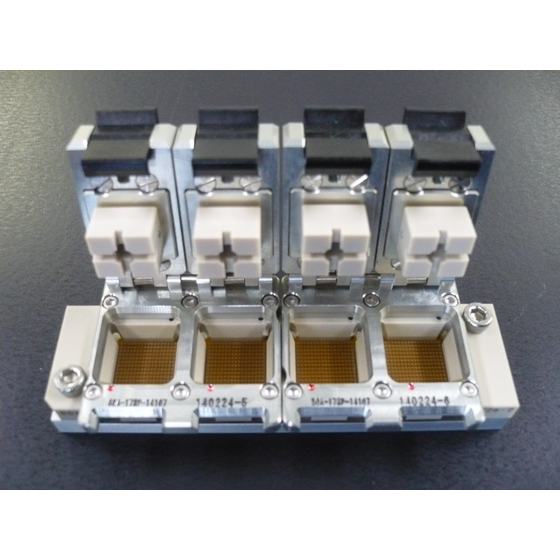

This is a high-performance test socket using a sheet-type contactor (PCR). It can be proposed for various applications, ranging from small ICs with fine pitches to large advanced packages. By using PCR, the structure becomes simpler, making maintenance easier. The socket's pressure structure can be customized to meet customer requirements, including clam-shell type, dual-side latch, and screw-fixed types. We can accommodate requests starting from one unit and provide it in a short delivery time (approximately three weeks after the request). For detailed specifications, we conduct individual designs for each project, so please feel free to contact our company representative.
Inquire About This Product
basic information
- Compatible pitch: 1.27 to 0.25 mm * The compatible electrode length and magnetic pole diameter vary for each pitch. - Compatible grid number: 100 x 100 (approx.) * The compatible grid number varies depending on the pitch. - Compatible size: 100 x 100 mm (electrode area/approx.) * The compatible size varies depending on the pitch. - Operating temperature range: Standard type / -40 to 125℃, Wide range type / -55 to 150℃
Price range
Delivery Time
※Prices will be set based on product specifications and order quantities. Please feel free to contact us.
Applications/Examples of results
- Final selection test (handler) - System level test / SLT - High-frequency verification evaluation - Design verification evaluation - Reliability evaluation - Debug verification - Inter-board connection (short-distance connection connector, solder replacement) / BtoB - Burn-in test
Company information
JMT Corporation is a company that handles PCR (rubber sheets), pressure conductive sheets for semiconductor package inspection, and jigs & pressure conductive sheets for printed circuit board inspection. We will provide high-performance test contactors by integrating our long-cultivated plating technology, photolithography technology, laser technology, and PCR technology. Please feel free to contact us if you have any inquiries.
