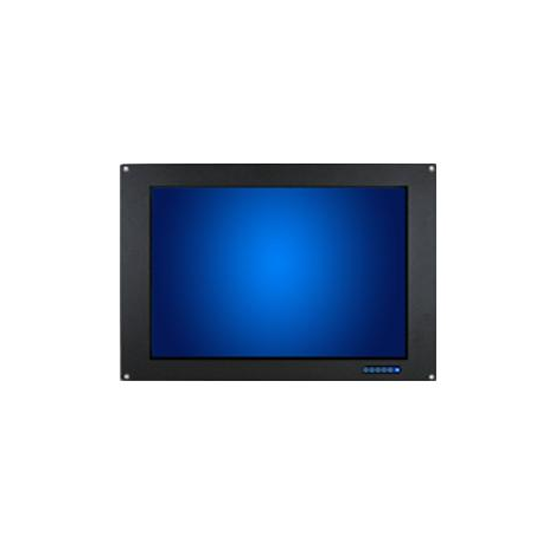

17 inches, 1280 x 1024, high brightness 1,000 cd/m², VGA + HDMI input, front waterproof and dustproof IP65, flush mount.
【Rejitek Rejitek IM-39170S Features】 ■ 17 inches, 1280 x 1024 ■ Front waterproof and dustproof IP65 protection ■ Supports VGA and HDMI inputs *DP (optional) ■ Surface-mounted capacitive touch (can be changed to resistive touch) ■ Supports high brightness of 1,000 cd/m² (optional) ■ Wide power supply range of 9–36V ■ Compatible with flush mount and VESA mounting
Inquire About This Product
basic information
Specifications - Screen size: 17" (1280 x 1024, 4:3) - Display resolution: 1280 x 1024 - LCD panel brightness: 1,000 cd/m² (can be changed to 1,500 cd/m²) - Input connectors: VGA, HDMI, DP (optional) - Touch panel: Resistive touch / Projected capacitive - Touch panel interface: Monitor side: USB for touch - Front waterproof and dustproof: IP65 - Power supply: DC 9-36V (AC adapter included) - VESA: 100mm or 75mm, flush mountable - Operating temperature: 0 to 60℃ - Warranty period: 1 year - Certifications: FCC, CE Package contents Main unit Touch cable (only with touch panel) AC adapter AC100V DC12V Display cable
Price information
Open price
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Outdoor use, monitors for PCs and video equipment on ships, etc.
Line up（3）
| Model number | overview |
|---|---|
| IM-39170S-25SX1A | Brightness 250 cd/m2 |
| IM-39170S-A0SX1A | Brightness 1000 cd/m2 |
| IM-39170S-A5SX1A | Brightness 1500 cd/m2 |
