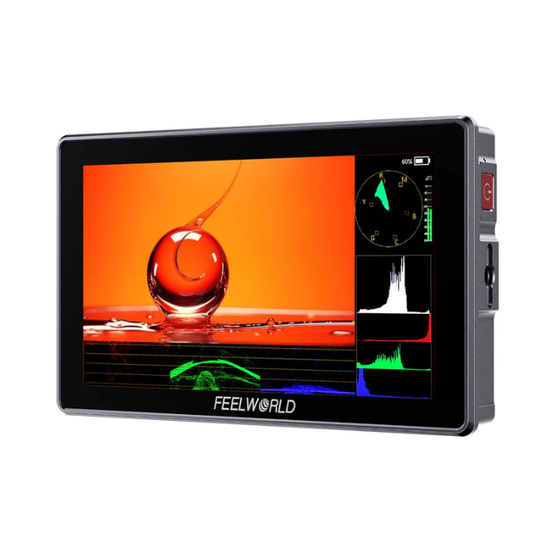

Feelworld, 5.5 inch wide, high brightness 1200 cd/m², monitor for DSLR cameras and video cameras, 12G-SDI input and output.
【FEELWORLD H5 Features】 ■ 5.5-inch wide (16:9) IPS LCD panel ■ 1920x1080 high-resolution LCD ■ High resolution 4096x2160 (4K DCI) display ■ Ultra-high brightness 1200cd/m2 LED backlight ■ Touch panel equipped for easy menu operation ■ 3D-LUT reading, editing, and display capabilities ■ Digital cinema DCI-P3 color gamut adopted ■ 12G-SDI input x1, 12G-SDI output x1 ■ HDMI input x1, HDMI output x1 ■ Audio output (3.5mm) x1 ■ Shooting assistance features (False Color, Check Field, Zoom-in) ■ Battery compatible (F970)
Inquire About This Product
basic information
Specifications - Panel: 5.5-inch wide (16:9) IPS LCD with LED backlight - Physical pixels: 1920x1080 - LCD brightness: 1200cd/m2 - Contrast: 1000:1 - Viewing angle: 80°/80° (left/right) 80°/80° (up/down) - Input signals: SDI (12G), HDMI (2.0), USB Type-C (3D-LUT, firmware update, DC 5V @3A power input compatible) - Output signals: SDI (12G), HDMI (2.0) - SDI input, SDI output: BNC - Power supply / Power consumption: DC 7-24V (DC plug) or DC 5V (USB Type-C) / 12W - Dimensions / Weight: 186(W)x124(H)x80(D)mm / 306g - Operating temperature: -20 to 70℃ Package contents - Main unit - Mini hot shoe mount - Cable tie - Manual - AC adapter AC100V DC12V - USB-A to USB-C conversion adapter - Mini HDMI cable - HDMI cable
Price information
Open price
Delivery Time
Applications/Examples of results
4K UHD/Full HD camera, monitor use for film shooting, etc.
