Compatible with 1200V/600A class IGBT module drive!

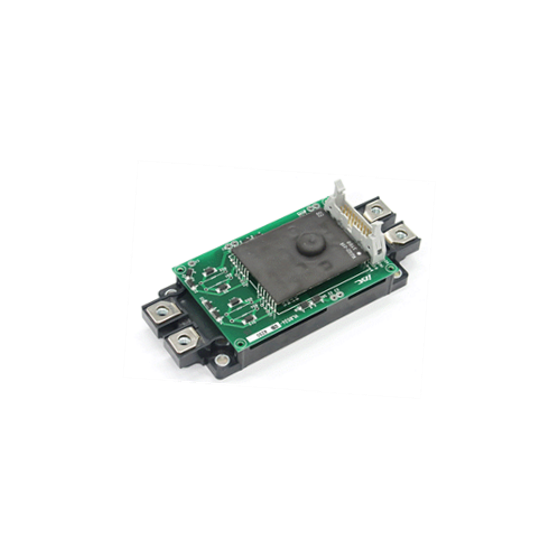

The "VLB524-01R" is a gate drive unit for IGBT modules that can be directly mounted on NX type and EconoDUAL type IGBT modules. This product is compatible with 1200V/600A class IGBT modules. A similar product, the "VLA598-01R," is available, which supports up to 1700V class; however, the "VLB524-01R" is specifically designed for the 1200V class, making it a more cost-effective option! It is recommended for customers aiming for low costs and those using NX type or EconoDUAL type modules. <Features> ● Can be directly mounted on NX type and EconoDUAL type modules ● Built-in dual gate drive circuits ● Built-in isolated DCDC converter for gate power supply ● Maximum gate output peak current ±9A ● Input-output isolation voltage withstand 2500Vrms (for 1 minute) ● Built-in short-circuit protection circuit (with soft shutdown function) *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
<Target IGBT Module> ● 650V Series, up to 600A class ● 1200V Series, up to 600A class
Price range
Delivery Time
Applications/Examples of results
●Inverter ●Servo ●UPS ●Solar power generation, etc.
